CNC lathe TK6136B

FOB Price

US$ 5,000 - 6,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Turning Center
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	360mm	Place of Origin	Yunnan, China
Brand Name	SMARTECH	Model Number	TK6136B
Voltage	380V	Power(W)	7.5kw
Dimension(LWH)	215012501600mm	Weight	1600kg
Certification	ISO9001	After-sales Service Provided	Overseas third-party support available

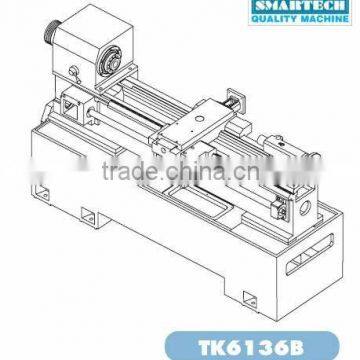

SMARTECH CNC LATHE FRAME

1 High-class casting processed by resin sand and wood mould;

2 Imported ball screws sets, linear guide and bearing;

3 Hydraulic tailstock;

4 Imported coupling;

5 Integrated spindle;

6 Stainless steel telescopic protection on X and Z axes;

7 Centralized maintenance-free automatic lubrication system;

1 Full guarding;

2 Hydraulic turret;

3 Hydraulic cylinder and chuck;

4 Hydraulic unit;

MODEL	TK6136B
Max swing diameter over bed	Φ380
Max turning diameter	Φ360
Max swing diameter over toolpost	Φ160
Max turning length	750/1000
Distance between centers	750/1000
Spindle nose spec	A-6
Spindle motor mounting	Vertical
Spindle speed	180/600/1600rpm 3 steps
Spindle Bore	Φ52
Bar capacity	Φ48
X axis Ball Screw Spe.	GQ2504-P3
Z axis Ball Screw Spe.	GQ4006-P3
Tailstock quill diameter	Φ60
Quill Stroke	120
Dimension (LxWxH)	2032x710x1240 / 2238x710x1240
Net Weight	1500/1950kg
