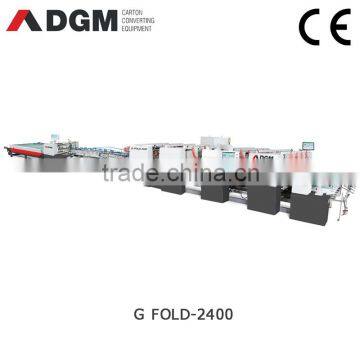

Automatic Corrugated cartons two pieces join folder gluer machine

E, C, B ,AB 3 & 5 layers

Straight Line

A:550-2400mm

B:100-1300mm

Lock-bottom Box

A:650-2400mm

B:max.1300mm

C:min.120mm

D:40-200mm

Two pieces Box

A:min.550mm

B:100-1300mm

1). Feeder section:

 • Untimed independent and motorized with 9 sponge feeding belt with 60mm width.

 • Four Lateral feed gates to adjust the width of each carton.

 • 4 adjustable front feed knives,adjusting length due to each sample.

 • Squaring device,can feed one or two pieces into the lateral register.

2).Two pieces assembly station

• Five big & two small guide plates(totally 7pcs),each one big of them can adjust the distance via remote control,and the small guide plates at both sides with manual adjustment in order to keep in line with two piece of cartons.

• Pneumatic lateral squaring device in both sides to join two pieces after applying the glue.

• Two sets of 4 belts with 2 or 4 logs to maximize the production as per customer's needs.

• Upper electronic gluing system by hot melt to join two pieces.

• Photocell sends a signal to squaring to activate the pneumatic cylinders that join the two boards.

3).Crash lock bottom section

• 4 sets of folding fingers and accessories to fold the flaps and panels of boxes.

4).Gluing section

 • Two lower gluing drums,left and right hand.

 • Two upper electronic gluing systems allow to glue by hotmelt or cold glue, as per customer's needs.

5). Folding and Closing section:

 • Equipped with bottom and outer belts,can fold 180º the 2^nd and 4rd crease,

 • Left & right guide wheels allow flexible adjustment of different positions to provide a perfectly smooth folding of the box during its closure.

 • Outer belts speed can be adjustable by two servomotor left & right side.

6).Trombone section:

 • Upper and lower arms adjustable in length.

 • Automatic belt tensioning adjusting system.

 • Automatic box collecting mechanism to ensure boxes enter to the press section neat and well aligned to form the perfect shingle of cartons on the collecting area.

• Electronic counter and pneumatic kicker for counting the number of batches.

 • Squaring device for accurate closing of lock-bottom boxes.

7).Press section(Delivery section):

 • Independent and motorized section allow to adjust speed on conveyor.

 • Automatic mode (percentage of machine speed) manual mode (continuous operation).

 • infeed mouth fully adjustable for snack delivery.

 • 6.5 m length press section with 4.7 meters effective pressure length.

 • Upper section moves back and forward, allowing for different box lengths.
