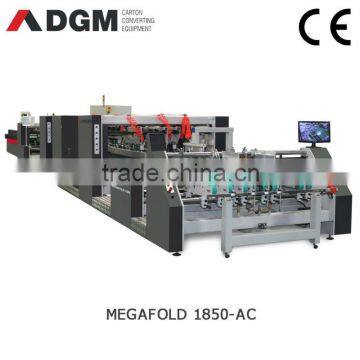

MEGAFOLD 1850 high speed automatic carton gluer machine

Straight Line

A:290-1850mm

B:120-1200mm

C:135-910mm

Lock-bottom Box

A:290-1850mm

B:max.1200mm

C:135-910mm

D:min.80mm

1.Feeder section

• Friction feeder Independently driven by servo-motor.

• Adjustable electronic pile vibrator.

• Lateral feed gates fully adjustable to width of the blank.

• (3) three adjustable front feed knives with bogies and three additional smaller sets.

• (6) six feeder belts including 4 drilled belts for suction function.

• Control panel with touchscreen and buttons for all operations.

• Extendable rear pile support for long boxes.

2.Side register section

• Independent section that registers the blank to one side ensuring a perfect parallelism before entering the pre-folding or gluing sections.

• Independently driven by servo-motor.

• Possibility to register on any side of the machine.

• Fast and easy setup.

3.Crash lock bottom section

• Independently driven by servo-motor.

• Complets set of folding hooks and helixes for smooth and accurate folding of front flaps.

• Adjustable hook tension.

• Set of accesories for “B” lock bottom.

• Fast and easy setup.

4.Gluing section

• Standard Electronic upper gluing system,cold glue with 3 guns.

• Other upper gluing systm configuration upon request.

• Two lower (left and right) gluing tanks.

•Easy to remove and clean.

5.Folding and Closing section

• Independently driven by servo-motor.

• Smooth and accurate folding of 2nd and 4th creases.

• Outer folding belts adjustable up to 180 º with variable speed controlled by two indepent servo-motors, L& R side.

• Three sets of upper & lower carriers with 34mm upper, 50mm lower and 100mm outer belts.

• Easy accessibility.

• Mini-box folding device.

6.Transfer section

• Independently driven by servo-motor.

• Upper and lower drive mechanism for length adjustment.

• Allows a perfect understack or overstack stream of boxes.

• Equipped with automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing and aligned flow.

• Pneumatic squaring device for accurate closing of crash lock-bottom boxes.

7.Squaring device

• Motorized and pneumatic squaring device on press section. Two carriers with transport belts allow a perfect flow of boxes moving to the pressing station.

• Rear stack corrector,that allows to square that boxes while falling on the lower conveyor.

8.Squaring device in Transfer section

• Pneumatic squaring device in transfer section.

• Aluminum plates stop the box while the upper trombone belts correct any deviation on the closing. The box is released after correction.

9.Press section

• Independently motorized pneumatic press section.

• Manual and Automatic mode(follow up).

• Upper section moves back and forward through a motorized system, allowing different box length.

• 6.5 meters total length with 4 meters of effective pressure.

• Pneumatic pressure regulation.
