G-FOLD 2000-AC High-Speed two pieces paper bag folding gluing machine
- 20 Set / Sets per Month
- Shenzhen
- T/T
You May Like
-
MEGAFOLD 1450-C high speed straight-line folder gluer
-
MEGAFOLD 1450-AC high speed folder and gluer carton machinery
-
MEGAFOLD 1450-PC high speed 4 6 corner used folder gluer machine
-
MEGAFOLD 1650-C high speed automatic gluer machine
-
MEGAFOLD 1650-AC high speed automatic carton gluer machine
-
MEGAFOLD 1650-PC high speed automatic folder gluer machine
Product Details
Condition | New | Application | Other, Machinery & Hardware | |
Packaging Type | Cartons | Packaging Material | Paper | |
Automatic Grade | Automatic | Driven Type | Mechanical | |
Voltage | 380V | Power | 22.5KW | |
Place of Origin | Guangdong, China | Brand Name | DGM | |
Model Number | G-FOLD 2000-AC | Dimension(L*W*H) | 19 x 2.8x 1.8m | |
Weight | 11.5T | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.G-FOLD 2000-AC High-Speed two pieces paper bag folding gluing machine2.With wireless remote control

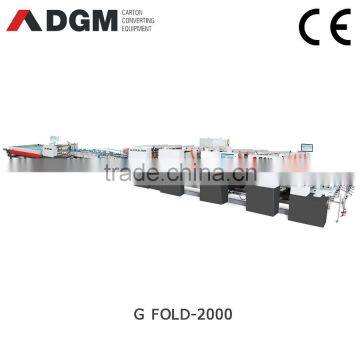

G-FOLD 2000-AC High-Speed two pieces paper bag folding gluing machine
Folder Gluer G-FOLD 2000-AC
1. Introduction
G-FOLD 2000 is a Two-pieces join Folder Gluer. It is suitable for large corrugated boxes. It is easy to set-up and friendly to operate. It can either process one or two pieces of carton. Equipped with independently motorized feeder, can feed two pieces of carton at same time and join them accurately thanks to a pneumatic lateral squaring device. The machine comes with two lower gluing wheels,left & right side,two upper electronic gluing systems,one for hotmelt application and one gun and the other one for cold glue with 3 guns.
2.Technical parameters
Specifications
Processed materials | |
Carton board | max . 1200gsm |
Corrugated flute tyep | E, C, B ,AB 3 & 5 layers |
Capablity | |
Speed | max. 200m/min |
Inching speed | 10m/min |
Thickness of folded box | max. 20mm |
Blank width | 550-950mm each piece |
Dimensions & Weight | |
Length | 19m |
Width | 2.8m |
Height | 1.8m |
Net Weight | 11.5Ton |
Installation | |
Electrical connected load | 22.5KW |
Compressed air | 6 bar |
Air compressor capacity | 15m³/h |
Air tank capacity | 60L |
BOXES
Straight Line
A:550-2000mm B:100-1300mm | |
Lock-bottom Box
A:650-2000mm B:max.1300mm C:min.120mm D:40-200mm
| |
Two pieces Box
A:min.550mm B:100-1300mm | |
|
Key Components
Picture | Description |
| 1). Feeder section: • Untimed independent and motorized with 9 sponge feeding belt with 60mm width. • Four Lateral feed gates to adjust the width of each carton. • 4 adjustable front feed knives,adjusting length due to each sample. • Squaring device,can feed one or two pieces into the lateral register. |
|
2).Two pieces assembly station • Five big & two small guide plates(totally 7pcs),each one big of them can adjust the distance via remote control,and the small guide plates at both sides with manual adjustment in order to keep in line with two piece of cartons. • Pneumatic lateral squaring device in both sides to join two pieces after applying the glue. • Two sets of 4 belts with 2 or 4 logs to maximize the production as per customer's needs. • Upper electronic gluing system by hot melt to join two pieces. • Photocell sends a signal to squaring to activate the pneumatic cylinders that join the two boards. |
| 3).Crash lock bottom section • 4 sets of folding fingers and accessories to fold the flaps and panels of boxes. |
| 4).Gluing section • Two lower gluing drums,left and right hand. • Two upper electronic gluing systems allow to glue by hotmelt or cold glue, as per customer's needs. |
| 5). Folding and Closing section: • Equipped with bottom and outer belts,can fold 180º the 2nd and 4rd crease, • Left & right guide wheels allow flexible adjustment of different positions to provide a perfectly smooth folding of the box during its closure. • Outer belts speed can be adjustable by two servomotor left & right side.
|
| 6).Trombone section: • Upper and lower arms adjustable in length. • Automatic belt tensioning adjusting system. • Automatic box collecting mechanism to ensure boxes enter to the press section neat and well aligned to form the perfect shingle of cartons on the collecting area. • Electronic counter and pneumatic kicker for counting the number of batches. • Squaring device for accurate closing of lock-bottom boxes. |
| 7).Press section(Delivery section): • Independent and motorized section allow to adjust speed on conveyor. • Automatic mode (percentage of machine speed) manual mode (continuous operation). • infeed mouth fully adjustable for snack delivery. • 6.5 m length press section with 4.7 meters effective pressure length. • Upper section moves back and forward, allowing for different box lengths. |
