Home > Products > T series Steering gearbox > 2 to 1 Ratio Spiral Bevel Micro Gear Motor
2 to 1 Ratio Spiral Bevel Micro Gear Motor
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Gearing Arrangement | Bevel / Miter | Output Torque | 6-6050N.m | |
| Rated Power | 0.014-335.0kw | Input Speed | 10-1450rpm | |
| Output Speed | 11-5713N.m | Place of Origin | Zhejiang, China | |
| Model Number | YBT8 | Brand Name | Obang |
Product Description
2 to 1 Ratio Spiral Bevel Micro Gear Motor
Type: | YBT series Spiral Bevel Redirector |
Model: | YBT…U-LR(O) |
Others: | YBT2,T4,T6,T7,T8,T10,T12,T16,T20,T25 |
Color: | Blue/Sliver or on customer request |
Material: | HT250 |
Ratio: | 1,1.5,2,2.5,3,4,5 |
Input power: | 0.014-335.0kw |
Output torque: | 11-5713N.m |
Input speed: | 10-1450rpm |
Bearing: | C&U, NSK, SKF or specified |
Seal: | CTY,CFW, SKF or specified |
Product features: | YBT series use European technology. It has many-side steering function so that can turn around stably in low speed or high speed with lower noise, smaller vibration and strong endurance.
|
Application areas: | Paper printing, metallurgy, mining, petrochemical industry, lifting transport, electricity, plastics machinery, building materials, environmental protection machinery, cement machinery, shipping, railway vehicle, textile printing and dyeing, etc. |
Lubricant: | Mineral |
Warranty: | 1Year |
Specifications
1,T -level helical bevel gear reducer, many varieties. All for actual transmission. Average efficiencies 98%
2,min:1set

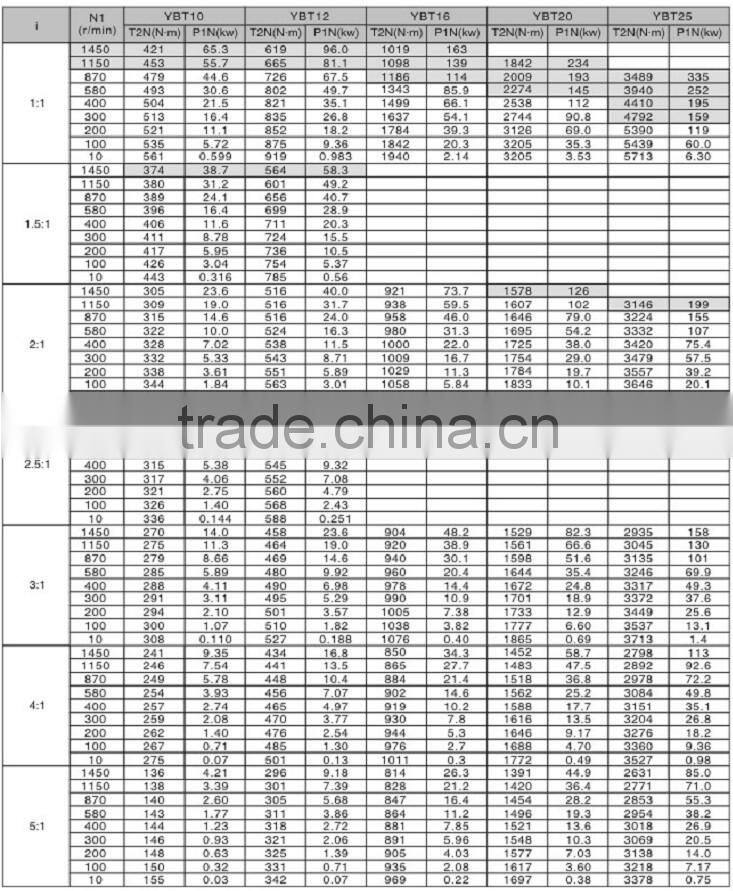

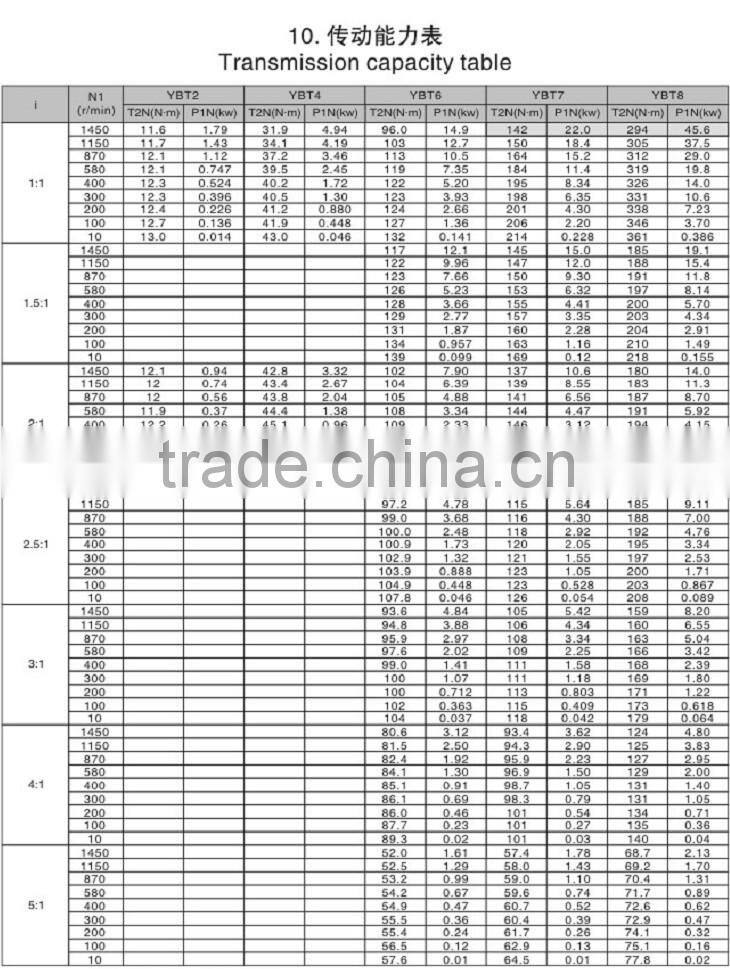

Technical data:
1,output torque:11.6-5713(N.m)
2,rated power:0.014-5713(kw)
3,input speed:≤10-1450 (rpm)
4,output speed:≤10-1450(rpm)
5,transmission:≥1-5
6,series:1

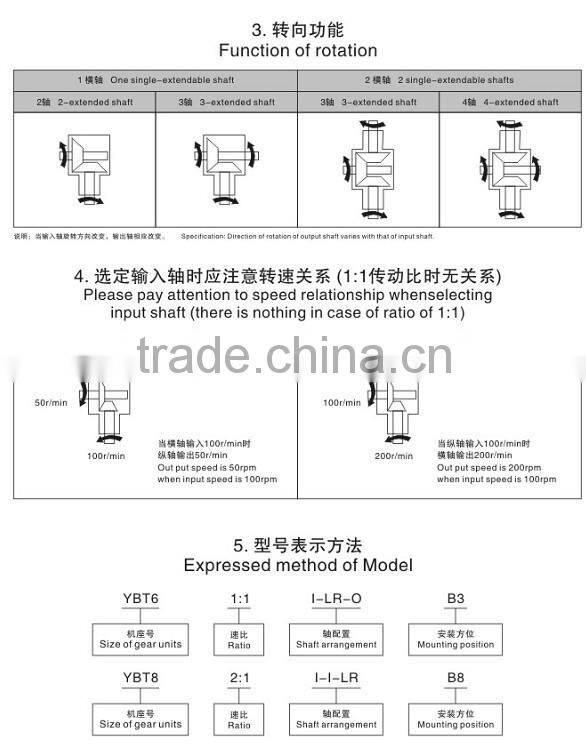

7,install form:see attchment
8,Model no. :T2/T4/T6/T7/T8/T10/T12/T16/T20/T25
T series spiral bevel gear commutator product features:
1, chassis: using high rigidity FC - 25 iron casting;
2, gear: adopt high quality high grade synthetic diamond 50CrMnT piece.modified processing, steel by carburizing quench treatment and grinding and become;
3, spindle: adopt high quality high purity steel alloy 40Cr piece.modified processing, have high heavy load capacity.
4, bearing a heavy load capacity, equipped with the roll cone bearing;
5, oil seal: imported double lip seal with high dustproof prevent leakage ability.
Product lubrication:
T series spiral bevel gear commutator proper lubrication, can play the steering and improve the operation efficiency, the life.
1, initial use two weeks or 100 or 200 hours, for early period, the attrition between abrasion might be a little metal powder, be sure to clean internal, and change new lubricating oil;
2, use for a long time, every half year - a year or 1000-2000 hours replacing a lubricating oil.
The product model:
T2 and T4, T6, T7 has, T8, T10, T16, T20 T12, and T25
(1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
