Home > Products > Roll Forming Machine > glazed tiles
glazed tiles
- 10 Set / Sets per Month
- tianjin
- T/T
You May Like
-
galvanic machine
-
roof sheet
-

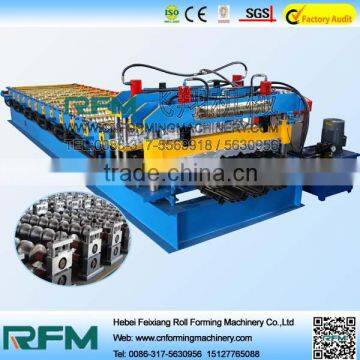

Glazed tile forming machine, glazed tiles roof cold roll forming machine
-
Glazed tile forming machine, glazed tile roof panel cold forming machine
-
Glazed tile forming machine, glazed tile high speed roll forming machine
-
Glazed tile forming machine, glazed steel roofing tiles making machinery
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 5m/min | Place of Origin | Hebei, China | |
| Brand Name | xingbo | Model Number | roof | |
| Power(W) | 5.5KW | Voltage | 380V | |
| Dimension(L*W*H) | 7.35*1.2*1.5m | Weight | 6T | |
| Certification | CE,ISO | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Roofing sheet making machine
1.Profile
| ||||||
| ||||||
No. | Item | Parameter | Note | |||
1 | Suitable | Type | PPGI & PPGL |
| ||
| Width | 1220mm |
| |||
Material | Thickness | 0.30—0.80mm |
| |||
| Yield stress | 240Mpa TO 550Mps |
| |||
2 | Product | Cover width | 1000mm±2mm | Refer to drawing | ||
| Wave height | 28±1mm |
| |||
Specs | Pitch Width | 200±2mm |
| |||
| Length | Any length |
| |||
3 | Machine | Active shaft | No. 45 steel |
| ||
| Roller | 70mm and No. 45 steel Chrome plated |
| |||
Material | Cutting Blade | SKD11 |
| |||
4 | Power Requirement | Type | 440AC/50HZ | Customized | ||
| Main motor | 15Kw |
| |||
| Hydraulic | 4kw |
| |||
5 | Speed | Forming Speed | 4-8m/min | Excludes Cutting | ||
Hydraulic | Type | Automatic with coil car |
| |||
| Max. Capacity | 10 T |
| |||
6 | Automatic | Suitable coil OD | 1200mm |
| ||
| Suitable coil ID | 508mm |
| |||
Decoiler | Max Coil width | 1250mm |
| |||
| Uncoiling style | Active uncoiling |
| |||
7 | Forming Stand | About 22-24 groups | Complete full rollers | |||
8 | Transmission style | Chain, sprocket | Entire chain | |||
9 | Main machine structure | Guide column or wallboard |
| |||
10 | Type of Cutting | length-set cutting | ||||
We can design the machine according to your specification and profile drawing.
Packaging and delivery:
(1)Package standard:
Control box and easy damage parts: protective paper and waterproof packaging material,or wooden boxes .
Main forming device: waterproof material
Hydraulic pump and spare parts: paper boxes with waterproof material.
(2)Delivery:
We will arrange the shipment within 30 working days upon confirmation of purchasing order or recepit of deposit.
About Feixiang
(1)Simple introduction of our factory:
HEBEI FEIXIANG ROLL FORMING MACHINERY CO.,LTD:
(1)Two decades frofessional cold steel forming equipments manufacturer
(2)One comapny with two factory,about 30000 square meter,more than 100 employees
(3)National GB/T,CE,ISO9001:2008 Certificates
(4)Built business relationship with customers from more than 65 countries and areas
(5)Main product : Color steel roll forming machine,C&Zpurlin machine,Glazed tile forming machine,Steel structural floor panel roll forming machine,Sandwich panel roll forming machine,Highway guardrail forming machine and Other cold bending forming equipments .
(6)Perfect after-sale service
(7)Photos of our company:
(2)Certificates and customers:
Waiting for ya,Contact me:
Contact Us
- Hebei Feixiang Roll Forming Machinery Co., Ltd.
- Contact nameSam Li Chat Now
- Phone86-317-5569916 8297121
- AddressNo. 88, Yingbin Road, Industrial Development Zone
