Glazed tile forming machine, glazed roof tile steel roll forming machine
- 20 Set / Sets per Month
- XinGang TianJIn China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Other, Metal wall&roof roll forming machine | |
| Tile Type | Colored Steel | Use | Other, wall&roof | |
| Production Capacity | 20sets/month | Place of Origin | Hebei, China | |
| Brand Name | XINGBO | Model Number | fx-panel | |
| Power(W) | 3KW | Voltage | 380V 50Hz 3Phases | |
| Dimension(L*W*H) | as design | Weight | about 3T | |
| Certification | CE ISO9001 | Warranty | within one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

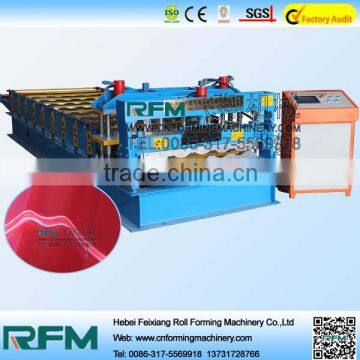

Glazed tile forming machine,glazed roof tile steel roll forming machine
1.The chart of process flow:
glazed roof tile steel roll forming machine
Decoiling--active feeding---forming---measuring length---cutting---product to stand
2.Main equipment:
glazed roof tile steel roll forming machine
Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.
3.Technical parameters of glazed roof tile steel roll forming machine
1)Profile thickness:0.3--1.2mm 2)inner tight decoiler
il inner diameter:450mm--550mm
B.max width of coiling:1250mm
C.max weight of loading:5000kg
D.Voltage:380v,50hz
E.Roller station:15
4.cutting system
A.hydraulic cutter
B.Blade and mould material:Cr12 steel with quenched treated 60-62°
C.Cutting system advanced hydraulic drive,after automatic cutting after forming,and no noise and waste
ntrol system
A.PLC: 3.2inch screen Taida form Taiwan
B.Coder: from south korea
6.hydraulic system
A.advanced hydraulic system from taiwan
B.Main Power:3KW
7.Product stand:
Our assessment and customers,
8. Payment terms of Automatic roll making machine :
30% by T/T in advance, 70% by T/T after you check and inspect the machine
