FX aluminium roof

FOB Price

USD $8,000 - $99,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	Feixiang
Model Number	Tile forming machine		After-sales Service Provided	Engineers available to service machinery overseas

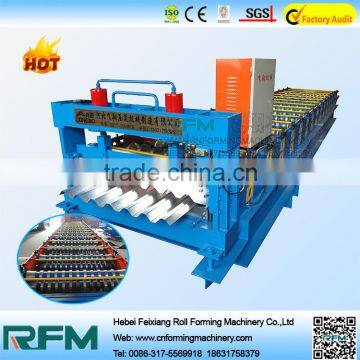

Roof panel forming machine

The chart of process flow

Decoiling- active feeding- roll forming- measuring length- cutting to length- product to stand

Main equipment

Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.

Technical parameters

1) manual inner tight decoiler

A. Coil inner diameter: 450mm to 550mm

B. Max width of coiling: 1200mm

C. Max weight of loading: 6000kgs

2) main forming machine

A. Number of forming steps: 13

B. Material of shaft: 45# steel adjustable treatment. Outer diameter: 70mm

C. Material of roller: high grade 45# steel (plated chrome on surface)

D. Main motor power: 3kw

E. Forming speed: 6-12m/min

F. Stand: 350# steel welding

G. The plating chromium of roller surface: 0.05mm

Products warranty: 12 months, and we will provide the technical support for the whole life of the equipment.
