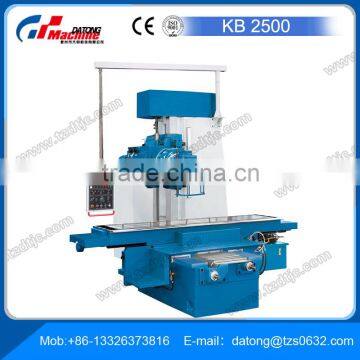

High-Capacity Bed-Type Milling Machine KB2500 for large parts and heavy machining Quality Choice

High-Capacity Bed-Type Milling Machine KB2500 for large parts and heavy machining

Feature:

1.This universal cutter head features a 360° swivel and is easy to control for versatile and complex machining of a wide variety of workpieces. 2 swivel levels allow setting of virtually any angle!
2.Robust and proven design – very rigid, heavy machine bed made of premium cast-iron to ensure maximum precision and low vibration
3.Increased operator comfort with large step guard along the entire work table length – easy accessibility to the universal cutter head for easy tooling and unloading of machine when working with large workpieces
4.Robust guideways ensure maximum precision and durability; an automatic central lubrication system minimizes maintenance work
5.The worktable features are optimized to fulfill the needs of a wide spectrum of applications: large table setup area of 2500 x 575 mm and high table load capacity of 3000 kg
6.Easy and quick change-over from vertical to horizontal alignment of cutter spindle
7.Infinitely variable automatic linear and cross feed
8.Strong hydraulic clamping for all axes
9.Powerful 11 kW motor for high-capacity machining.

Specification:

Standard Equipment:

3-axis position indicator, collet chuck ISO 50 with collets 4,6,8,12,16,18,22,26 mm, reducing sleeve ISO 50 / MT4, coolant system, foundation bolts 11 x M24 x 500, operating tools, operator manual
