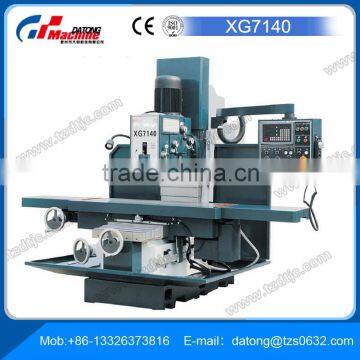

Universal Bed-Type CNC Milling Machine XG7140
- qingdao.tianjin.shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | DATONG | Model Number | XG7140 | |
Type | Universal | CNC or Not | CNC | |
Voltage | 380V | Power(W) | 7.5KW | |
Dimension(L*W*H) | 1900*2250*2280mnm | Weight | 4260/4460 kg | |
Certification | CE ISO9001 | Warranty | One Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Universal Bed-Type CNC Milling Machine XG7140
Specification:
Model | XG7140 |
Spindle taper/Diameter of quill | ISO50/180mm |
Distance from spindle to table | 110 mm-640 mm(30 mm-530 mm) |
Distance from spindle to column | 540 mm |
Number of spindle speeds/Range of spindle speeds | 12(step)/40-1800 r.p.m |
Spindle travel | 80 mm |
Head swivel angle | +/- 30º |
Size of table | 1525 mm×400 mm(2000 mm×400 mm) |
Table travel/X/Y/Z | 1200 mm(1500 mm)/500 mm/500 mm |
X,Y-axis Rapid feed speed | 3000 mm/min |
Z-axis Rapid feed speed | 1800 mm.min |
Rate of feeding/ Control equivalent | 1-3000 mm/min 0.001 mm |
Max. Weight of workpiece | 800 kg |
T -slot Number/Width/Distance | 3/18 mm/98 mm |
Milling head moving(Vertical)slide way | Rectangle slide way |
Cross slide way | Rectangle slide way |
Longitudinal slide way | Adjustable dovetail slide way |
Main motor | 5.5 kw (7.5 kw)(7.5 HP) |
X,axis driving motor | (Servo motor)1.5 kw |
Y axis driving motor | (Servo motor)1.5 kw |
Controller type | PLC control |
Coolant pump power | 90 w(25L) |
Overall dimension | 2825×2160×2150 mm |
Packing size | 1900×2250×2280 mm |
N.W/G.W | 4260/4460 kg |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
