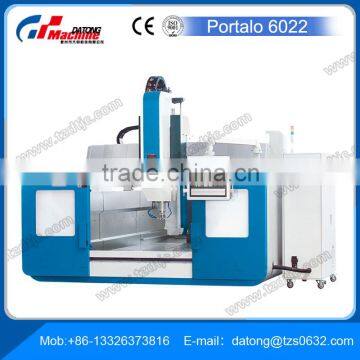

CNC Gantry-Type Machining Center Portalo 6022 High-Capacity Machining Center for heavy, high-volume workpieces

CNC Gantry-Type Machining Center Portalo 6022  for sale

Feature:

1.Cast-iron frame with high gantry design for maximum rigidity, small foot print for efficient and economical operation
2.Rigid traverse, driven on both sides - Perfectly synchronized drives
3.Z axis with wide, generously spaced square guides
4.Permanently fixed table accommodates workpiece weights over 2 tons per sqm
5.NEFF preloaded ball screws and proven Siemens servo-motors ensure dynamic feed and rapid feed on all axes
6.Machine components are made in Germany and Japan for optimum availability, ensuring reliable function for many years
7.Hardened table surface can handle workpieces without any effects on mechanical table parts and ensures superior protection during loading and unloading
8.Powerful headstock drive, up to 17 kW capacity plus servo-motors on axes with up to 5.2 kW capacity
9.All models in this series include headstock-integrated coolant feeds, so this advanced tool technology can also be used on very large workpieces
10.A powerful coolant system combined with the included chip conveyor ensures excellent chip disposal and optimum machining conditions
11.All guideways are protected by telescoping stainless steel covers
12.Optional universal and angle cutter heads allow angular or lateral machining of workpieces
13.An automatic central lubrication system ensures reliable lubrication of all components

Specification:

Standard Equipment:

Siemens 828 D control, electronic hand-wheel, separate control panel,

20-station tool changer, 2 spiral chip conveyors, chip conveyor chain type,

control cabinet with heat-exchanger, air gun, automatic central lubrication,

coolant system, Kühlmittelzufuhr durch die Frässpindel (CTS),

work lamp, operating tools, operating manual and programming instructions

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.

Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.

"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.

The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
