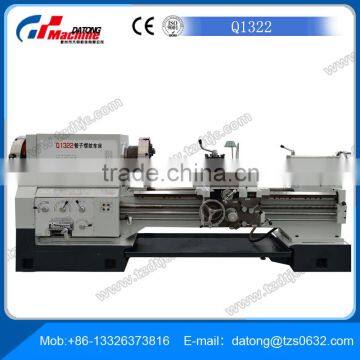

High Quality Q1322 Pipe Threading Lathe machine For Sale
- 100 Set / Sets per Month
- qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Export CA Series Horizontal Lathe Machine CA6161C*2000
-
Export CA Series Horizontal Lathe Machine CA6161C*1500
-
Export CA Series Horizontal Lathe Machine CA6266*1500
-
Export CA Series Horizontal Lathe Machine CA6261B*1500
-
Export CA Series Horizontal Lathe Machine CA6261B*2000
-
Export CA Series Horizontal Lathe Machine CA6261B*750
Product Details
Condition | New | Type | Horizontal | |
CNC or Not | Normal | Automatic Grade | Manual | |
Max. Swing Diameter | 630mm | Place of Origin | Shandong, China | |
Brand Name | Datong | Model Number | Q1322 | |
Voltage | 380V | Power(W) | 11KW | |
Dimension(L*W*H) | 3657/5157*1449*1393mm | Weight | 5200/6300kg | |
Certification | ISO9001,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Q1322 Oil Country Lathe, Oil Pipe Lathe, Pipe Thread Lathe
Pipe threading lathe series are mainly used for processing all kinds of pipe threads including inner, outer, taper, metric and inch thread etc., and also undertake various turning works such as inner and outer cylindrical surface, conical surface and end surfaces
Main Characters:
Hollow spindle bore design allows processing extra-long work-piece
Double chuck equipment realizing better clamping of work-piece
Taper guide bar installed ensures taper thread processing ability
Detailed Specifications:
ITEMS | UNIT | Q1322 Pipe Lathe | |
Basic | Max. Dia. swing over bed | mm | 630 |
Max. Dia. swing over cross slide | mm | 340 | |
Distance between centers | mm | 1500/3000 | |
Range of threading capacity | mm | 50-220 | |
Width of bed way | mm | 550 | |
Main motor | kw | 11 | |
Coolant pump motor | kw | 0.125 | |
Spindle | Spindle bore | mm | 230 |
Spindle speed | r/min | 12 steps: 24-300 | |
Taper bar | Max. taper processing | -- | 1:4 |
Max. travel of taper guide bar | mm | 750 | |
Tool post | Tool post travel | mm | 200 |
Distance between spindle center and tool post | mm | 32.5 | |
Size of tool section | mm | 30*30 | |
Max. rotation angle of tool post |
| 60 | |
Leadscrew | Leadscrew pitch(mm) | inch | 1/2 |
Feed | Z axis feed | mm | 26 grade/0.07-1.33 |
X axis feed | mm | 22 grade/0.02-0.45 | |
Carriage | Cross slide travel | mm | 490 |
Carriage rapid traverse speed | mm/min | 4000 | |
Threading | Metric thread | mm | 24 grade/1-14 |
Inch thread | t.p.i. | 40 grade/2-28 | |
Tailstock | Tailstock quill diameter | mm | 100 |
Tailstock quill taper | mores | m5# | |
Tailstock quill travel | mm | 250 | |
Tailstock cross travel | mm | 15 | |
Others | Dimension(L/W/H) | mm | 3657/5157*1449*1393 |
Net weight (kg) | kg | 4440/5290 | |
Gross weight | kg | 5200/6300 | |
Accessories | Tool post | 1 set | 4 position manual turret |
Chuck | 2 set | 520 three-jaw manual chuck | |
Taper device | 1 set | taper guide bar | |
Center rest | 1 set | 300 | |
Rear support bracket | 1 set | 300 | |
Package | Standard export package | 1 set | Steel pallet and plastic overclothes |
The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
