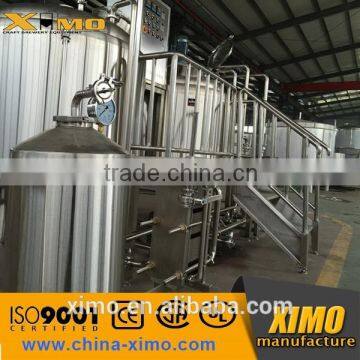

2000l large industrial beer factory and beer brewing equipment made in China

2000l large industrial beer factory and beer brewing equipment made in China

Specifications:

Professional&advanced Brewery Equipment manufacturer

High quality tested 304 0r 316 stainless steel material

OEM,ODM,Personal tailer service is welcoming

 Perfect turnkey solution

 Engineers are avaliable for overseas customers' after-sale service

 ISO9001/CE

 3 years warranty

High quality 300L stainless steel brewery beer equipment small beer brewery equipment micro brewery equipment

 Description XIMO Good Quality 2000l large industrial beer factory and beer brewing equipment made in China:

1.Introduction of Beer Brewery Equipment

We are  Brewery Equipment manufacturer.Our brewery equipment is carefully manufactured and tailored specifically to each of our customers’ needs. We can produce all kinds Beer Equipment that will accommodate any budget or production goal that each customer might have. For any specific information regarding our Beer Brewing Equipment, please feel free to contact with me.

2.Advantages of Beer Brewery Equipment

5 High

High Quality SUS304 and SUS316 raw materials with material quality certificate ;

High Quality False Bottom Filter - virtually guarantees consistent wort flow

High Quality Stainless Steel Thermometers and Valves

High Efficiency Heat Exchanger

High Efficiency Designs and Rapid Recovery and Compact- Space Saving

4 Excellent

Excellent welding: Fully welded exterior shell TIG Welding

Excellent polishing: Interior and exterior finish polished to a sanitary finish

which eliminates any possibility of contamination;

Excellent Details:

Dual zone dimple cooling jackets (3 or more on larger tanks)

2” Polyurethane insulation & Sanitary tri-clamp connections

Individually Controlled On-Demand Temperature Controls For Each Tank

Excellent Design:

Rotating racking port& Side manway hole, shadowless

2” CO2 blowoff arm for maximum tank space utilization

Flexible Brewing Configurations & All systems made to suit & Custom Manifold Designs

3.Details of Beer Brewery Equipment

(1) High quality materials

The raw materials is SUS304 and SUS316, which require materials quality certificate.

We’ll test the materials quality using chemical agent when we receive the materials.

(2) Excellent appearance

The polishing standard of welding seam is 240 um, 60mm width. All of connection required

turn up workmanship and all of welding seam required polishing, which is more smooth

tank surface. We’re very serious about the excellent appearance of tanks.

(3) The standard of tanks

We use plasma torch to cut the materials on the soft carpet, avoid to damaging the surface of

stainless steel, and then we adopt double argon protection welding

Volume: Working volume and 20%-30%additional space.

Inner Shell: SUS304 materials, thickness 3mm, acid washing and

passivation treatment, furthermore,polishing and mirror treatment are workable with different cost.

All of the inner surface connection using turnup workmanship and polishing round.

The normal pressure is 0.2Mpa, maximum test pressure is 0.4Mpa.

Cladding: SUS304, 2mmthickness, welding seam polishing, 60mm width.

All of the welding connection polishing treatment, more smooth

(4) The special design

Four adjustable legs. In special area, stand bolt and gasket can be designed to avoid earthquake.

All of connection is Φ38.1(exceptmash tun outlet), Jacket using thread connection,

pipe using clamp, easy to unpick and washing. Fliter plate using Milling type grid,

strong and smooth. No noise from mixer equipment, the motor variable frequency.
