145w Polycrystalline Solar Panel With CE ISO PID TUV VID
US$ 87 - 87
/ Piece
50 Pieces(Min. Order)
- ningbo
- T/T L/C D/P D/A
You May Like
-
200w Commercial Monocrystalline Factory Price Solar Panel
-
Low Price 205w Outdoor Monocrystalline Solar Panel
-
210w Sun Power High Efficiency Monocrystalline Solar Panel
-
Cheap Commercial 150w Polycrystalline Solar Panel
-
155w Polycrystalline Solar Panel
-
160w Outdoor Rooftop Installation Polycrystalline Solar Panel
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dcloud | |
| Model Number | DY-145w | Type | Other |
Product Description
Specifications
1)25 years warranty insured by chubb
2)CE/TUV
3)High efficiency, good quality
4)Quick delivery
5)OEM available
145w polycrystalline solar panel
Features
1) High module conversion efficiency, through superior manufacturing technology
2) 0 to +5W positive tolerance for mainstream products
3) Certified to withstand high wind loads and snow loads
4) Anodized aluminum is mainly for improving corrosion resistance
5) Anti-reflective, Highly transparent, low iron tempered glass
6) Excellent performance under low light environment
Benefits
25-year performance warranty
10-year product warranty
poly
| STC | 145W | 150W | 155W | 160W |
| Maximum Power (Pmax) | 145W | 150W | 155W | 160W |
| Open Circuit Voltage (Voc) | 22.20V | 22.30V | 22.40V | 22.40V |
| Short Circuit Current (Isc) | 8.64A | 9.87A | 9.06A | 9.21A |
| Voltage at Maximum Power (Vmpp) | 17.90V | 18.10V | 18.20V | 18.30V |
| Current at Maximum Power (Impp) | 8.11A | 8.31A | 8.52A | 8.75A |
| Module Efficiency (%) | 14.62% | 15.13% | 15.63% | 16.14% |

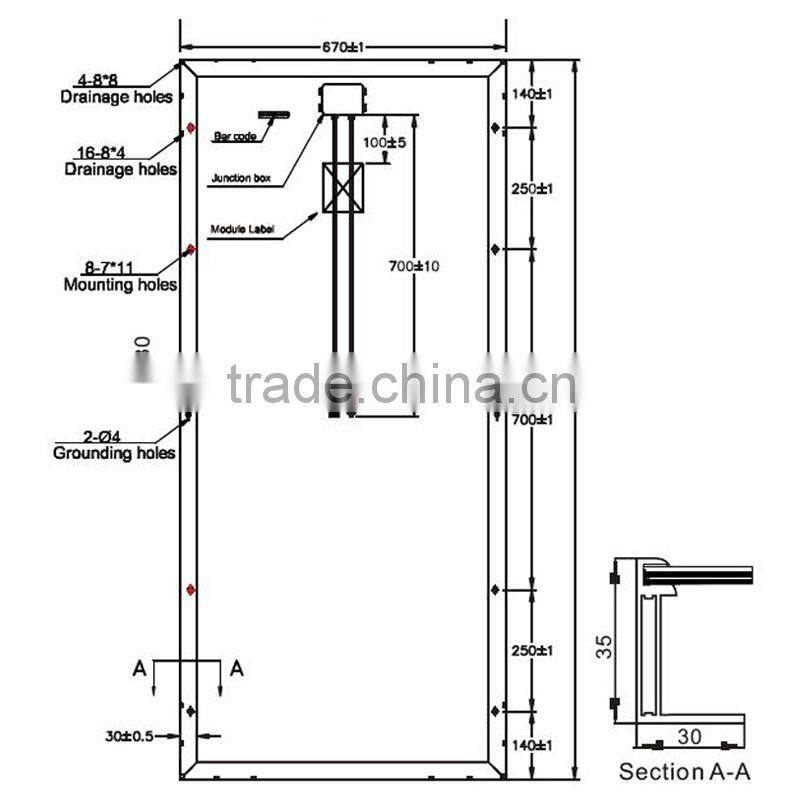

Mechanical Characteristics
| Solar Cell | 156x156mm (6inches) |
| No. of Cells | 36 (4 × 9) |
| Dimensions | 1480× 670 × 35mm |
| Weight | 10.5 kgs |
| Front | Glass 3.2 mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP65/IP67 rated (2 bypass diodes) |
| Output Cables | TÜV (2Pfg1169:2007), |
| symmetrical length | |
| (-) 700mm and (+) 700mm | |
| Connectors | MC 4 compatible |
| Mechanical load test | 5400Pa |
| Operating Module Temperature | -40 °C to +85 °C |
| Maximum System Voltage | 1000 V DC (IEC) / 600V DC (UL) |
| Maximum Series Fuse Rating | 10 A |
| Power Tolerance | 0/+5W |
Temperature Charateristics
| Nominal Operating Cell Temperature (NOCT) | 45±2°C |
| Temperature Coefficient of Pmax | -0.44 %/°C |
| Temperature Coefficient of Voc | -0.33 %/°C |
| Temperature Coefficient of Isc | 0.055 %/°C |
Packing Configuration
| Container | 20' GP | 40' GP |
| Pieces per pallet | 30 | 30 |
| Pallets per container | 14 | 30 |
| Pieces per container | 420 | 900 |

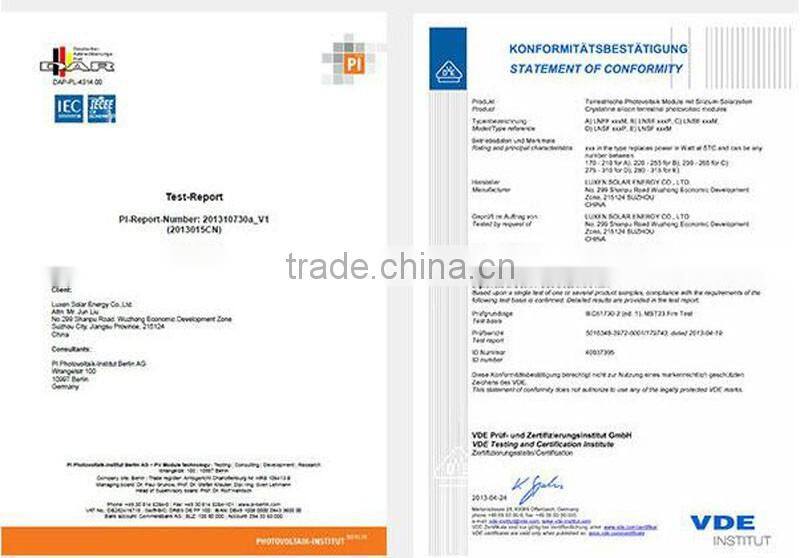

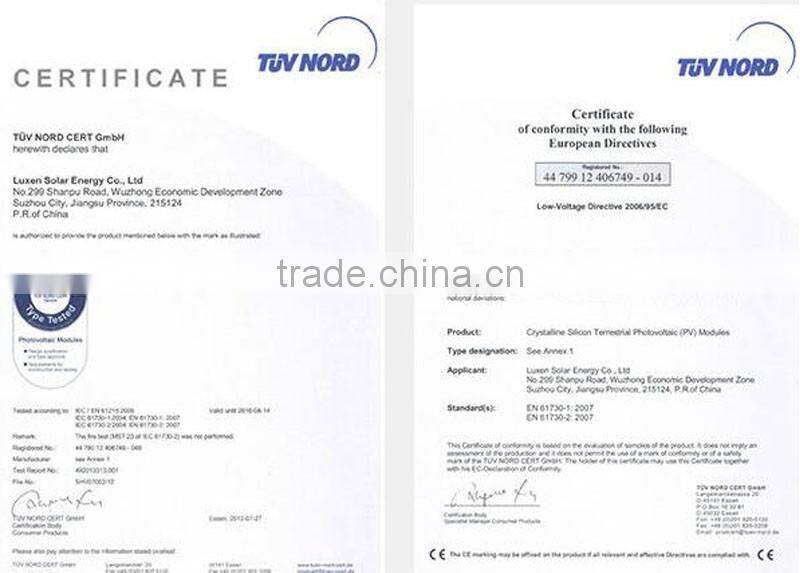

CERTIFICATES

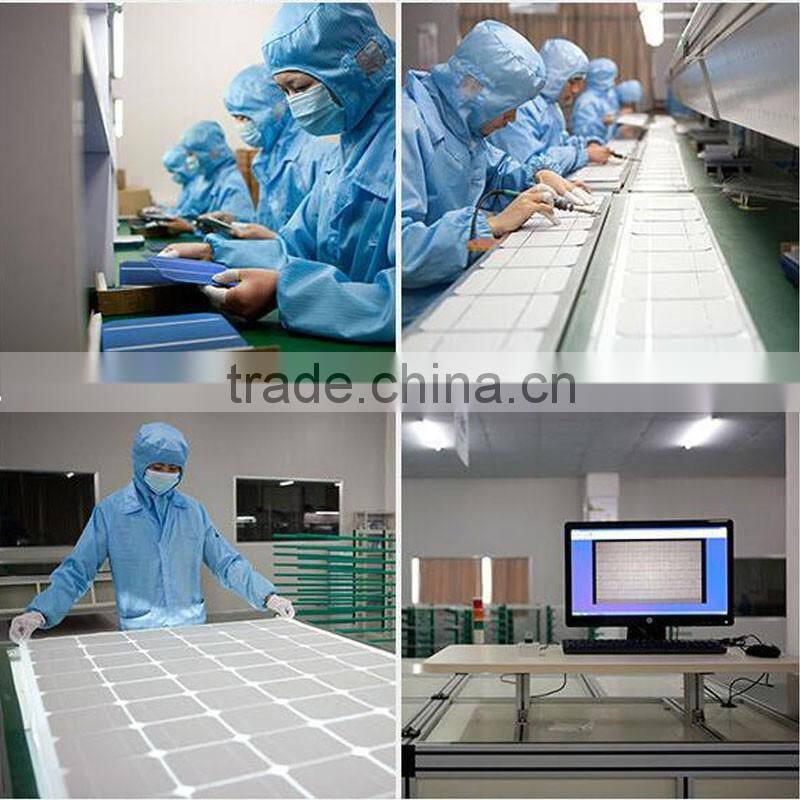

FACTORY

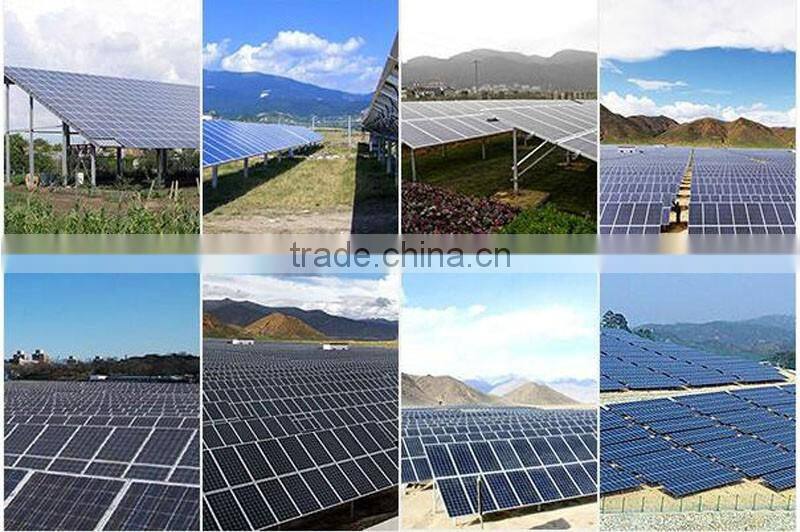

REFERENCE
