Home > Products > solar panel > 195w Outdoor Residential Power Monocrystalline Solar Panel

195w Outdoor Residential Power Monocrystalline Solar Panel

FOB Price

US$ 135 - 135 / Piece

50 Pieces(Min. Order)

Port ningbo
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dcolud
Model Number	LNFE-195W		Type	Other

Product Description

Specifications

1)25 years warranty insured by chubb
2)CE/TUV
3)High efficiency, good quality
4)Quick delivery
5)OEM available

195w monocrystalline solar panel

Features

1) High module conversion efficiency, through superior manufacturing technology

2) 0 to +5W positive tolerance for mainstream products

3) Certified to withstand high wind loads and snow loads

4) Anodized aluminum is mainly for improving corrosion resistance

5) Anti-reflective, Highly transparent, low iron tempered glass

6) Excellent performance under low light environment

Benefits

25-year performance warranty

10-year product warranty

mono

STC	195W	200W	205W	210W
Maximum Power (Pmax)	195W	200W	205W	210W
Open Circuit Voltage (Voc)	44.9V	44.9V	45.0V	45.2V
Short Circuit Current (Isc)	5.62A	5.80A	5.91A	6.02A
Voltage at Maximum Power (Vmpp)	36.8V	36.8V	37.0V	37.1V
Current at Maximum Power (Impp)	5.27A	5.45A	5.55A	5.66A
Module Efficiency (%)	15.27%	15.67%	16.06%	16.45%

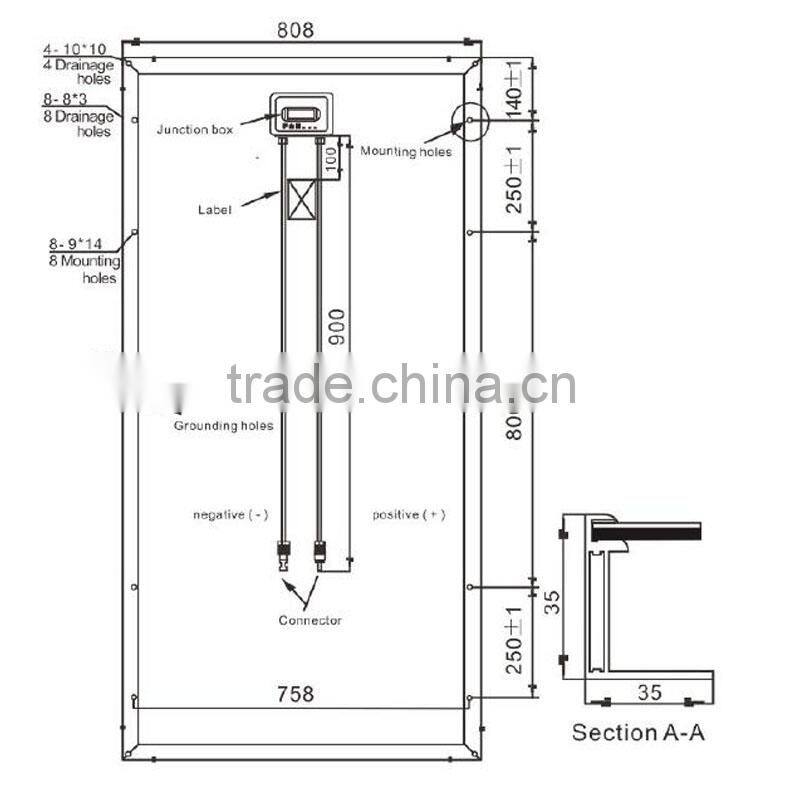

Mechanical Characteristics

Solar Cell	125x125mm (5inches)
No. of Cells	72(6*12)
Dimensions	158080835mm
Weight	15.5kgs
Front	Glass 3.2 mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP65/IP67 rated (2 bypass diodes)
Output Cables	TÜV (2Pfg1169:2007), UL 4703, 4.0 mm2,
	symmetrical length
	(-) 900mm and (+) 900mm
Connectors	MC 4 compatible
Mechanical load test	5400Pa
Operating Module Temperature	-40 °C to +85 °C
Maximum System Voltage	1000 V DC (IEC) / 600V DC (UL)
Maximum Series Fuse Rating	15 A
Power Tolerance	0/+5W

Temperature Charateristics

Nominal Operating Cell Temperature (NOCT)	45±2°C
Temperature Coefficient of Pmax	-0.44 %/°C
Temperature Coefficient of Voc	-0.33 %/°C
Temperature Coefficient of Isc	0.055 %/°C

Packing Configuration

Container	20' GP	40' GP
Pieces per pallet	29	29
Pallets per container	12	28
Pieces per container	348	812
