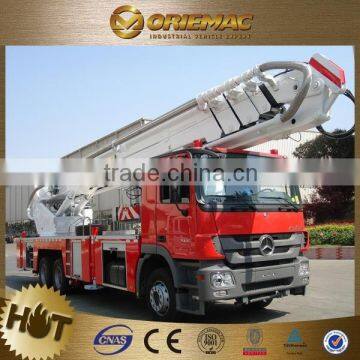

Water Tower Fire Truck fire-fighting

1,Main Technical Data in Travel Configuration

Category

Item

Unit

Parameter

Dimension

Overall length

mm

11900

Overall height

mm

3995

Overall width

mm

2490

Wheel space

1st, 2nd axle

mm

4600

2nd, 3rd axle

mm

1350

Track

Front axle

mm

1930

Mid/Rear axle

mm

1800

Weight

Rated fire-extinguishing agent capacity

Water

kg

4000

Foam

kg

3200

Gross weight

kg

28750

Axle load

Front axle

kg

7380

Mid/Rear axle

kg

21370

Travel parameter

Chassis

Steyr King ZZ1322M4646

Engine model

WD615.87

Power

kW/(r/min)

206/2200

Torque

N·m/(r/min)

1160/1300~1600

Max. travel speed

km/h

≥75

Min. turning diameter

m

≤24

Approach angle

°

≥15

Departure angle

°

≥10

Braking distance (at speed 30km/h )

m

≤10

Min. ground clearance

mm

32

Max. grade-ability

%

≥35

2,Main Technical Data for Operation

Category

Item

Unit

Parameter

Main performance

Rated working height

m

32

Max. working radius

m

19

Boom elevating range

Angle of 1st boom section tohorizontal

°

0~80

Angle of 2nd boom section to 1st boom section

°

0~140

Angle of 3rd boom section to2nd boom section

°

0~210

Outrigger span(longitudinal×lateral)

m

5.6×4.8

Working speed

Boom operating time

s

≤140

Outrigger extension time

s

≤40

Boom slewing speed

r/min

0~1

Fire Fighting

performance

Water pump

Flow

l/s

40

Rated pressure

MPa

1.5

Water monitor

Rated flow

l/s

40

Water reach

m

≥60

Foam reach

m

≥45
