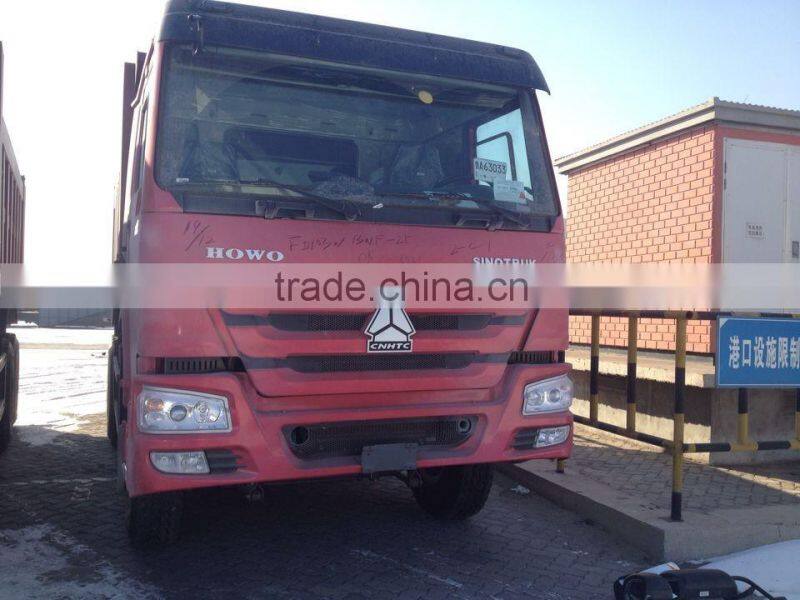

HOWO 10 Wheel Truck Dump Hinge(ZZ3257M3447A1)

Truck Model

ZZ3257N3447A1

Dimension(Lx W xH)(unloaded)

7835×2496×3386

Cargo body size (LxWxH)(mm)

5200x2300x1400,  T middle lift,bottom 8mm, side 6mm

Approaching angle/Departure angle(°)

19/27

Overhang(front/rear) (mm)

1500/1560

Wheel base (mm)

3425+1350

Max speed(km/h)

75

Curb weight(kg)

12380

Loading Weight(kg)

12490

Engine

(Steyr technology, made in China)

Model

WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection

Fuel type

Diesel

HorsePower, max(kw/rpm)

336HP,247/2200

Emission

EURO2

Fuel tanker capacity

300

Transmission

Model

HW15710

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8098

Front axle

HF9 Drum, Steering with double T-cross section beam

Rear axle

HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels

Tyre

12.00R20, radial tire

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab, single-sleeper, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
