Product Details
| Place of Origin | Jiangsu, China | Brand Name | XCMG | |
| Model Number | XZJ5067JGK |
Product Description

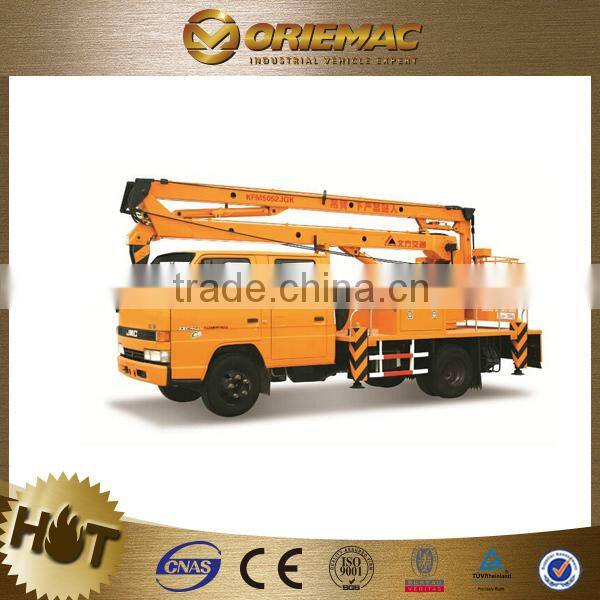

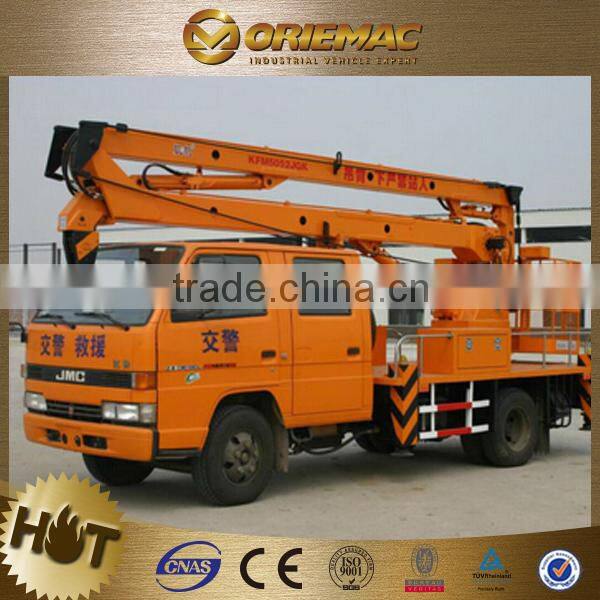

2015 new china brand xcmg XZJ5067JGK truck mounted aerial work platform vehicle !!!
Specifications
Specifications
1:Brand name:XCMG
2:High strength
3:Long service life
4:Convenient maintenance
Specifications
High efficiency
High strength
Long service life
Convenient maintenance
Comfortable operation
Aerial Work Platform adventages:
The machine adopts the original Germany HAWE electromagnetic valve (main valve), proportional valve and proportional handle. With the excellent operation performance, the machine is controlled electro-hydraulic proportionally and adjusted stepless.
Germany Hawe solenoid valve (main control valve), proportional valve, and proportional handle
Electro-hydraulic proportional control, stepless speed regulation, and superior operational performance
The internally mounted leveling system ensures that the work platform always keeps level
The horizontal and vertical extension and withdrawal of the four outriggers can be independently controlled, featuring good adaptability
The synchronic telescopic arm structure has high work efficiency and wide work range.
The multifunction integrated handle is very convenient, smooth and comfortable to operate.
The PLC control has superior safety performance like automatic amplitude limit and danger alarm function
Parameters of XCMG 14m Aerial Working Platform(XZJ5067JGK):
Vehicle Model | XZJ5066JGK | XZJ5067JGK |
Max Operating Height | 14.9m | 14.9m |
Max Operating Radius | 7m | 7m |
Rated Load of Platform | 200Kg | 200Kg |
Slewing Angle | ±360° | ±360° |
Max Operating Radius on Maximum Operating Height | 2.4m | 2.4m |
Max Operating Height on Maximum Operating Radius | 8.8m | 8.9m |
Max Lifting Capacity | 2000Kg | 2000Kg |
Max Lifting Height | 8m | 8.1m |
Dimension in Driving( L×W×H) | 6650×2000×2920(mm) | 6650×2000×3050(mm) |
Chassis Model | JX1060TSG23 | NKR77LLLWCJAY |
Engine Model | JX493ZLQ3 | 4KH1-TC |
Engine Power | 85kw | 96kw |
Passengers | 2+3 | 2+3 |
