High Quality Festo Solenoid Valve
- Ningbo or Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Diaphragm | |
| Pressure | Medium Pressure | Power | Pneumatic | |
| Material | Brass | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | 1/2 | |
| Place of Origin | Zhejiang, China | Model Number | MN1H-2-1/2-MS | |
| Brand Name | FESTO |
Product Description
Specifications
festo solenoid valve1.model number:MN1H-2-1/2-MS
2.material:brass
3.MOQ:1pc

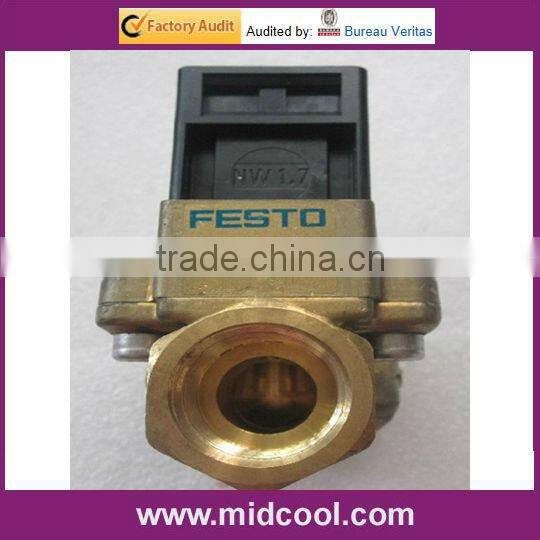

high quality festo solenoid valve
product data sheet
General technical data | |||||||
Connection, valve | G1/4 | G3/8 | G1/2 | G3/4 | G1 | G1 1/2 | |
Valve function | 2/2-way, single pilot | ||||||
Constructional design | Diaphragm valve | ||||||
Sealing principle | Soft | ||||||
Actuation type | Electrical | ||||||
Type of reset | Air spring | ||||||
Type of pilot control | Piloted | ||||||
Direction of flow | Non-reversible | ||||||
Exhaust function | No flow control | ||||||
Manual override | Non-detenting, detenting via accessory | ||||||
Type of mounting | In-line installation | ||||||
Mounting position | Any | ||||||
Nominal size | [mm] | 13 | 13 | 13 | 20 | 25 | 40 |
Standard nominal flow rate | [l/min] | 2000 | 2900 | 3100 | 10000 | 11500 | 30500 |
Product weight | [g] | 450 | 450 | 400 | 1100 | 1000 | 2600 |
Materials | Housing | Brass | |||||
Diaphragm | Nitrile rubber | ||||||
Max. tightening torque1) | [Nm] | 35 | 60 | 105 | 200 | 380 | 850 |
Operating and environmental conditions | ||
Operating medium | Filtered compressed air, lubricated or unlubricated | |
Operating pressure | [bar] | 0.5 … 10 |
Ambient temperature | [°C] | –10 … +60 |
Temperature of medium | [°C] | –10 … +60 |
Valve response times | ||
Connection, valve | On | Off |
G1/4 | 30 | 100 |
G3/8 | 30 | 100 |
G1/2 | 30 | 100 |
G3/4 | 120 | 180 |
G1 | 120 | 180 |
G1 1/2 | 230 … 440 | 300 … 1,000 |
