High Quality Magnetic Cylinder Pneumatic

FOB Price

US$ 100 - 400 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

magnetic cylinder pneumatic
operating pressure: 0.6....12
ambient temperature: -20...+80

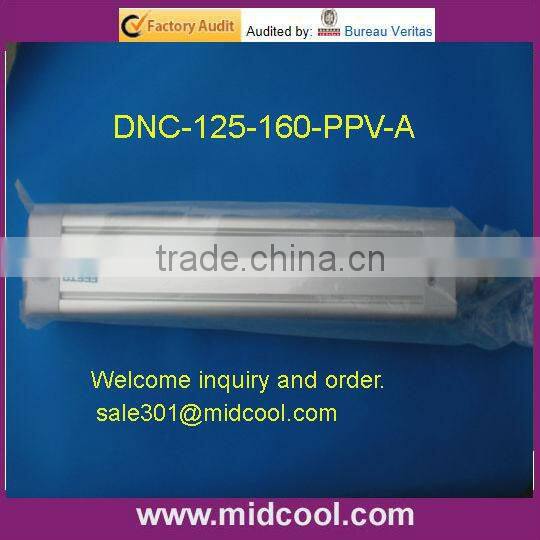

high quality magnetic cylinder pneumatic

product section

data sheet

General technical data
Piston	32	40	50	63	80	100	125
Pneumatic connection	G 1/8	G 1/4	G 1/4	G 3/8	G 3/8	G 1/2	G 1/2
Constructional design K3 K5	M10×1.25	M10×1.25	M10×1.25	M10×1.25	M10×1.25	M10×1.25	M10×1.25
	M6	M8	M10	M10	M12	M12	M16
	M10	M12	M16	M16	M20	M20	M27
Constructional design	Piston
	Piston rod
	Profile barrel
Max. torsional backlash Of piston rod	±0.65	±0.6	±0.45	±0.45	±0.45	±0.45	-
Cushioning	Flexible cushioning rings/pads at both ends
Cushioning	Pneumatic cushioning, adjustable at both ends
Cushioning length PPV[mm]	20	20	22	22	32	32	42
Position sensing	Via proximity sensor
Type of mounting	Via female thread
Type of mounting	Via accessories
Mounting position	Any

Operating and environmental conditions
Piston		32	40	50	63	80	100	125
Operating medium		Compressed air in accordance with ISO 8573-1:2010 [7:4:4]
Note on operating/pilot medium		Operation with lubricated medium possible (in which case lubricated operation will always be required)
Operating pressure		0.6 … 12
[bar]	R8	1.5 … 12
	S11	After 10 strokes
		0.16 … 12		0.1 … 12		0.06 … 12			0.06… 10
		After 24 hours
		0.3 … 12		0.2 … 12		0.1 … 12			0.1 … 10
TT		1 … 12
Ambient temperature1) [°C]		–20 … +80
	S6	0 … 120
	TT	–40 … +80
Corrosion resistance class CRC2)		2
R3		3
Certification		Germanischer Lloyd
ATEX		Specified types
