Home > Products > Contruction Elevator > SC100 1 Ton Sinigle Cage Construction Hoist

SC100 1 Ton Sinigle Cage Construction Hoist

FOB Price

US$ 10,000 - 30,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	YUJIE	Model Number	SC100
Usage	Construction Hoist	Power Source	Electric
Sling Type	Cable	Maximum Lifting Weight	1000kg
Maximum Lifting Height	200m	Lift Speed	33(0~38)
Certification	CE,ISO,BV,SGS	Warranty	ONE YEAR
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

SC100 1 ton sinigle cage construction hoist

Construction elevator is often referred to as construction lifter, but construction lifter, including the definition of a broader platform construction also belongs to the construction lifter series.

Simple construction elevator is by car, driving mechanism, standard section, attached to the wall, chassis, fence, electrical system and so on several parts, manned cargo construction machinery is a frequently used in Construction, because of its unique enclosure structure make it take up both comfort and safety,

construction elevator is usually used with tower crane on the construction site, the average load in 1-5 tons, running speed is 1 to 60 m/min.

China's production of construction lifter is more and more mature, and gradually to the international.

The main technical parameters

Item	unit	Model
Item	unit	SC100	SC100 /100	SCD200	SCD200 /200	SC200	SC200 /200	SC200P	SC200 /200P	SCD200 /200P
Rated capacity	kg	1000	2×1000	2000	2×2000	2000	2×2000	2000	2×2000	2×2000
Number of people	No.	12	2×12	16	2×16	16	2×16	16	16	16
Rated lifting speed	m/min	36	36	36	36	36	36	0-85	0-85	0-85
Max.lifting height	m	200	200	200	200	200	200	250	250	250
Motor power	kw	2×11	2×2×11	2×11	2×2×11	3×11	2×3×11	3×18.5	2×3 ×18.5	2×2 ×15
Suspension coop inner size	m	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2	3×1.3×2.2
Weight of 650 standard section	kg	124	148	131	165	124	148	124	148	165
Dimension of 650 standard section	mm	650×650×1508	650×650×1508	650×650×1508	650×650×1508	650×650×1508	650×650×1508	650×650×1508	650×650×1508	650×650×1508
counter weight	kg			1000	1000					1800
Suspender loading capacity	kg	200	200	200	200	200	200	200	200	200
Dimension of 800 standard section	mm	800×800×1508	800×800×1508	800×800×1508	800×800×1508	800×800×1508	800×800×1508	800×800×1508	800×800×1508	800×800×1508

The working principle of figure

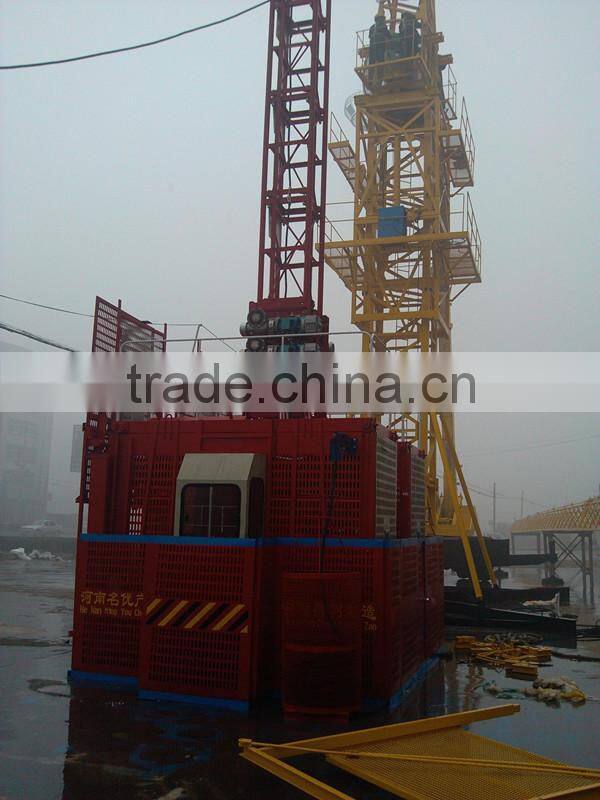

Product pictures

More photos exhibition

Our factory

Our International Market

We have established overseas projects in 40countries and regions. And we need your support to introduce our high quality product and service to your honored company and country.

Welcome to your inquiry for more technical advantage introduction of our construction elevator
