Home > Products > Contruction Elevator > SC100/100 Construction Elevator for Material and Workers

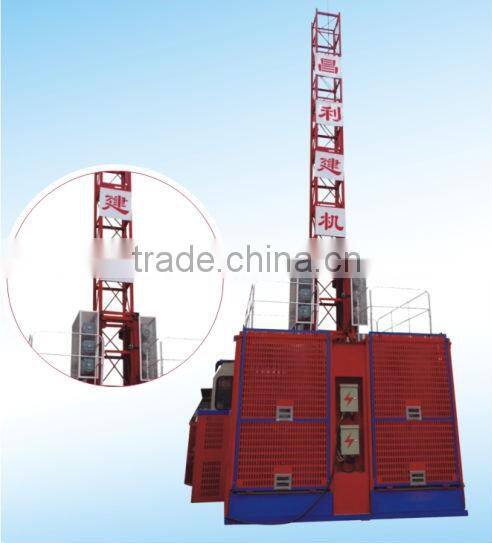

SC100/100 Construction Elevator for Material and Workers
- China Main Port
- T/T Credit Card
You May Like
-
Construction Hoist Lift,construction Hoist Lifter ,double Cage Construction Hoist
-
Construction Elevator Hoist, Electric Construction Elevator
-
SC200 Construction Lift Hoist Price
-
Single Cage 2T Construction Elevator SC200
-
YU JIE Brand Construction Elevators 2T
-
Safety&Reliable Performance Construction Elevator SC 200 , Elevator, Building Elevator
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YU JIE | Model Number | SC100/100 | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Chain | Maximum Lifting Weight | 1T per cage | |
| Maximum Lifting Height | 200m | Lift Speed | 36m/min | |
| Certification | ISO/CE |
Product Description
SC100/100 Construction Elevator for Material and Workers
Main Technical Parameters
Parameter | Unit | Model | |||
SC100 | SC100/100 | SC200 | SC200/200 | ||
Rated capacity | kg | 1000 | 2×1000 | 2000 | 2×2000 |
Number of people | No. | 12 | 2×12 | 16 | 2×16 |
Rated lifting speed | m/min | 36 | 36 | 36 | 36 |
Max.lifting height | m | 200 | 200 | 200 | 200 |
Motor power | kw | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
Suspension cage inner size | m | 3×1.3×2.2 | 3×1.3×2.2 | 3×1.3×2.2 | 3×1.3×2.2 |
Weight of 650 standard section | kg | 124 | 148 | 124 | 148 |
Dimension of 650 standard section | mm | 650×650×1508 | 650×650×1508 | 650×650×1508 | 650×650×1508 |
counter weight | kg | = | = | = | = |
Suspender loading capacity | kg | 200 | 200 | 200 | 200 |
Dimension of 800 standard section | mm | 800×800×1508 | 800×800×1508 | 800×800×1508 | 800×800×1508 |
Zhengzhou Changli Machinery Manufacturing Co., Ltd is a professional manufacturer and exporter of SC100 Construction Elevator, Construction Hoist, Construction Lifter, Construction Material Elevator, Construction Elevator for Material and People, Double Cabins Construction Hoist, Double Cages Construction Hoist
