Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YUJIE | Model Number | JS500 | |
| Motor Power | 5.5kw | Mixing Power | 18.5kw | |
| Charging Capacity | 800L | Reclaiming capacity | 500L | |
| Speed of Mixing Drum | 30.4r/min | Water Supply Mode | Water Pump Motor | |
| Working Cycle Period | 30-40s | Discharge Way | Hydraulic/Pneumatic | |
| Outline Dimension | 2960x2600x4400mm | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
auto cement mixer machine, 0.5m3 concrete mixer for sale,CE approved concrete mixer
General introduction of JS series of concrete mixer
1. JS series concrete mixer is twin shaft compulsory concrete mixer, which can mix dry concrete, plasticity concrete, flowability concrete, light aggregate concrete and various mortar.
2. we use high manganese wear-resisting cast steel lining board and mixing blades which is durable and convenient to replace. Working with PLD series aggregate batcher, we can form a concrete batching plant which can be used for various kinds of large, medium or small prefabricated factory, construction sites,roads, bridges, airports and tunnels etc.
3.This series concrete mixer has the advantages of reasonable design, compact structure, convenient operation,stable working, good mixing quality, high efficiency, low energy consumption, low noise and long life wearing parts, etc.
4. JS series of concrete mixer we have: JS500, JS750, JS1000, JS1500, JS2000, JS3000 and JS4000.
specification of JS500 concrete mixer
Item | Parameter | |
Charging capacity | 800L | |
Discharging capacity | 500L | |
Capacity | 20-25m3/h | |
Max. size of aggregate | 80/60mm (Pebble/Macadam) | |
Mixing blade | Rev. | 35r/min |
Qty. | 2*7 | |
Mixing electromotor | type | Y180M-4 |
Power | 18.5kw | |
Windlass electromotor | type | YEZ132S-4 |
Power | 5.5kw | |
Water pump electromotor | Type | 50DWB20-8A |
Power | 0.75kw | |
Overall dimension | 2690mm*2600mm*4400mm | |
Overall weight | 3970kg | |

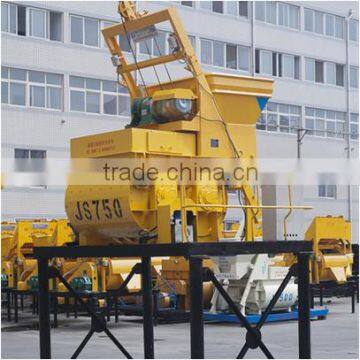

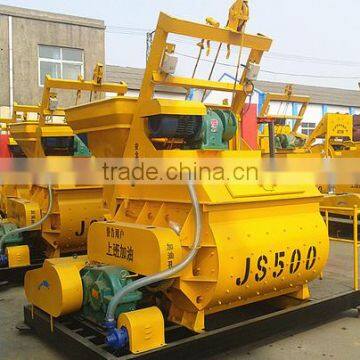

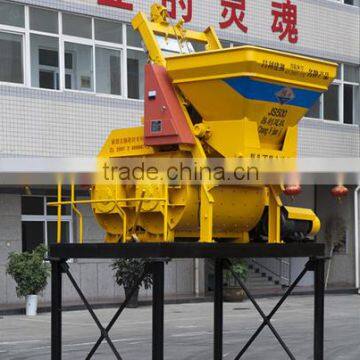

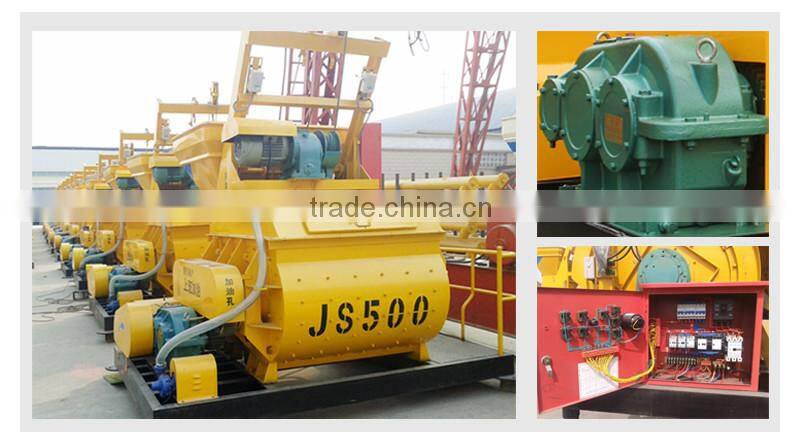

More photos
Our advantages:
1. we have CE,ISO,SGS and BV certificate;
2. we have 31-year experience;
3. we are a supplier of Lafarge;
4. we have over 500 workers to ensure quick delivery;
5. we have 20 engineers to design special concrete plants for our customers;
6. we have after sales service like: installation, debugging, operator trainning and spare parts supply.
Our certification
Q1. What is the discharging mode of your concrete mixer?
A1. Both hydraulic and pneumatic discharging mode are available. Hydraulic is more advanced and popular than pneumatic type. However we supply as per customer's requirement.
Q2. What is the material do you use for mixing blades and lining board?
A2. High chromium alloy wear resistant plate and high manganese alloy lining board.
Q3. How long can the mixing blades and lining board serve for?
A3. Our mixing blades can mix 30,000 sessions, while lining board can stand for 50,000 sessions.
