container housing australia

FOB Price

US$ 3,500 - 4,500 / Set

4 Sets(Min. Order)

Port XINGANG(TIANJIN)
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China	Brand Name	CDPH
Model Number	Container house	Material	Sandwich Panel
Use	Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant

Product Description

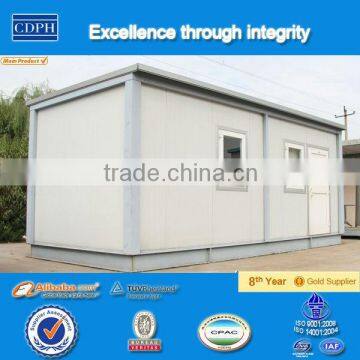

container housing :

The standard container for various purposes is suitable for international transport. It is of appropriate external dimensions and has connections for lifting and fixing or compounding. The container is designed as a light construction consisting of floor and roof frames and corner profiles. The construction enables compounding of individual containers in longitudinal and transverse directions without limits. It also enables compounding of containers in 2 floors in height (ground floor + first floor), or in 3 floors in height of warehousing of these container (ground floor +2floors). The wainscots of the container are made of light insulation panels and offer pleasant climate in the interior due to their building and physical properties. Used materials are environmental friendly.

Transport Solution: Flat package and shipped on board, the shipping space of one 40ft container can place 8 sets of this house and the shipping space of one 20ft container can place 4 sets of this house.

The detailed container housing information as follows:

No.	Sort	Name		Specification
1	Specification	length		6055mm
2		Width		2435mm
3		Wall height		2790mm
4		weight		2000KGS
6	Standard accessory	Wall		75mm glass wool sandwich panel, 0.4mm color steel sheet and 60kg/m3 glass wool density inside.
7		Roof		Outside is 0.5mm color steel as the surface, middle is 75mm glass wool insulation. Inside is 9mm melamine board. Permitted live loading:1.5KN/m²
8		Base		External wainscot is 0.3mm galvanized steel sheet metal, and insulation is glass wool. The supporting material is 16mm cement board and the inside decoration is 2mm rubber plastic flooring. Permitted loading: 3.0KN/m²
9		Door		Steel door, single door with dimension of 800*200mm, furnished with lock.
10		Window		1) PVC sliding window, white color, with dimensions of 9001100mm; Supplied with fly screen. 2) PVC casement window, white color, size is 7001000mm. Supplied with fly screen.
11		Post		Galvanized steel, material: Q345-Q235, 3mm thickness. Connection part is M12 high strength bolt.
12	Option	Drainage system		Provided plan, design and construction
13		Electric system		Provided plan, design and construction
15	Technical parameter	Resistant temperature	-20°Cto 50°C
16		Wind load	11 grade
17		The resistant earthquake grade	7fission activate.
