Product Details

Place of Origin	Beijing, China	Brand Name	CDPH
Model Number	Container house	Material	Sandwich Panel
Use	Carport, Hotel, House, Other, Office, Shop, Toilet, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Warehouse, Workshop,Plant

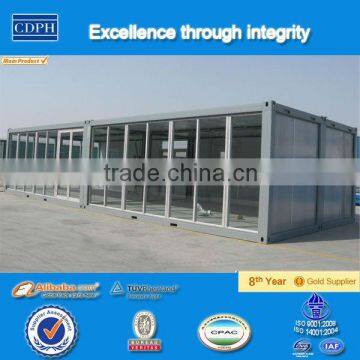

cabin :

Galvanized structure. Good anti-rust ability and long endurable time.

Can be delivered directly as flat packs, Save renting shipping containers fee..

Can be transported as a whole between sites, save disassembling and reassembling troublesome.

Easy installation, Save labor cost.

Recycle use, Save each project's accommodation cost.

The detailed cabin information as below:

No.	Sort	Name		Specification
1	Specification	length		6055mm
2		Width		2435mm
3		Wall height		2790mm
4		weight		2000KGS
6	Standard accessory	Wall		75mm glass wool sandwich panel, 0.4mm color steel sheet and 60kg/m3 glass wool density inside.
7		Roof		Outside is 0.5mm color steel as the surface, middle is 75mm glass wool insulation. Inside is 9mm melamine board. Permitted live loading:1.5KN/m².
8		Base		External wainscot is 0.3mm galvanized steel sheet metal, and insulation is glass wool. The supporting material is 16mm cement board and the inside decoration is 2mm rubber plastic flooring. Permitted loading: 3.0KN/m²
9		Door		Steel door, single door with dimension of 800*200mm, furnished with lock.
10		Window		1) PVC sliding window, white color, with dimensions of 9001100mm; Supplied with fly screen. 2) PVC casement window, white color, size is 7001000mm. Supplied with fly screen.
11		Post		Galvanized steel, material: Q345-Q235, 3mm thickness. Connection part is M12 high strength bolt.
12	Option	Drainage system		Provided plan, design and construction
13		Electric system		Provided plan, design and construction
15	Technical parameter	Resistant temperature	-20°Cto 50°C
16		Wind load	11 grade
17		The resistant earthquake grade	7fission activate
