Product Details

Place of Origin	Beijing, China	Brand Name	CDPH
Model Number	Container house	Material	Sandwich Panel
Use	Carport, Hotel, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant

Product Description

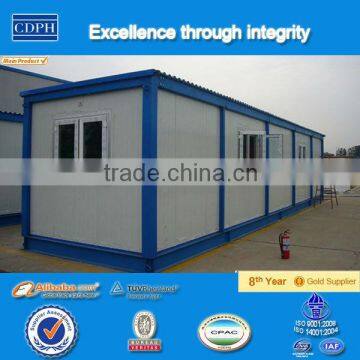

housing container :

The standard container for various purposes is suitable for international transport. It is of appropriate external dimensions and has connections for lifting and fixing or compounding. The container is designed as a light construction consisting of floor and roof frames and corner profiles. The construction enables compounding of individual containers in longitudinal and transverse directions without limits. It also enables compounding of containers in 2 floors in height (ground floor + first floor), or in 3 floors in height of warehousing of these container (ground floor +2floors). The wainscots of the container are made of light insulation panels and offer pleasant climate in the interior due to their building and physical properties. Used materials are environmental friendly.

Transport Solution: 1,Transport on truck as a whole after complete installation

2,Flat package

housing container Specification:

No.	Specification
1	Standard house	Size	Outer	6000mm/12000mm long
2		Size	Inner	5600mm/11600mm long
3		structure	type	3.75mm thick galvanized frame
4			connection	M 12 high intensive bolt
5			surface	paint
6		Wall	EPS insulation	100/150mm color steel sandwich panel,0.4mm color steel sheet and 15kg/m3 density inside.
7		roof	Surface	0.5mm color steel corrugated sheet
8			insulation	EPS 100mm thick
9			ceiling	optional
10		base	Surface	0.5mm color steel corrugated sheet
11			insulation	EPS
12			floor	optional
13			covering	optional
14		Door	Outer door	SIP door, size: 800*2000mm, 1pc.
15		Window	PVC type	Sliding window, size: 850*1100mm, 2pcs
16	Accessory	decoration	Wall skirting	Macromolecule board
17			Roof skirting	Macromolecule board / PVC
18			Inner corner	Macromolecule board / steel sheet
19		Electric	lighting	Fluorescent lamp. 36W*2
20			Socket	2 pin and 3 pin multi-socket, 3pcs
21			Switch	One way switch, 1pc
22			DB	For lighting, 1pc
23			Terminal	Industrial terminal, 3P32A
24	Options	Wall	Glass wool insulation	100mm color steel sandwich panel,0.4mm color steel sheet and 60kg/m3 density inside.
25		Base	Covering	Rubber flooring
26		Door	Outer door	Steel door, size: 850*2000mm
27		Door	Inner door	SIP door, size: 750*2000mm
28		Window	PVC type	Casement window, size:700*1000mm, 2pcs
29		Window	Safety grill	Steel, match with window of 850*1100mm
