Newsunpower Aluminum Solar mounting structure

NSP AL-Ground System is made of 100% aluminum for mounting on concrete strip foundations or ground screw. It is light and strong, graceful and smart.

Newsunpower Aluminum Ground Mounting System Design:

*100% aluminum Al6005-T5

*Can be flexible and easy adopted for both Ground Screw Base and Concrete Base

* Parts,Supporting Legs and Portrait Beams are pre-assembled before shipping, saving the installation time and cost

* Precise processing and positioning

* Experienced engineer team,we specially design the solution for your specific solar project

*We offer OEM designs, for we have our own aluminum processing factory and stainless steel processing factory

*We do good and comfortable after sale services,for we wish the long term cooperation of couse.If really possible,our engineers will give live instructions and suggestions when your installation.

Technique Details:

*Material: Aluminum Alloy 6005-T5

* Installation site: Ground/Floor/Wild Field

*Tilt angle: 10 to 60° all ok

* Max wind speed: can be up to 60m/s

* Max Snow load: up to 1.4kN/m²

*Color: Silver Anoized,Black Anoized or customized

* Duration: more than 15 years

*Certification: AS/NZS 1170;SGS technique testing

Main market:

*Japan

*South and North American

*European

*Asian

In our AL-Ground System, the Longitudinal Rail Beam is highly pre-assembled, the sizes of the legs and the 110H Rail are well designed and machined on factory to eliminate any welding or cutting on installation site, thus to save your install time and cost dramatically.

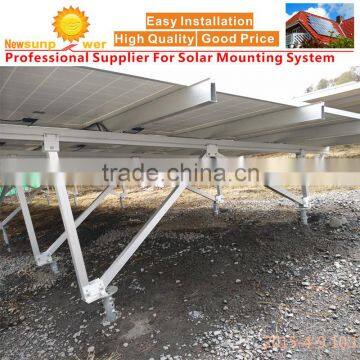

After installation Pic:
