Manufacturer for Solar Aluminum Ground Mounting Sturctures

FOB Price

USD $0.08 - $0.1 / Kilowatt

50 Kilowatts(Min.Order)

Supply Ability 50000 Short Ton / Short Tons per Month
Port Xiamen Port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	Newsunpower
Model Number	AL+C 1640x992x40-10L 4X10		Type	Other, Manufacturer for Solar Aluminum Ground Mounting Sturctures

Product Description

Newsunpower Aluminum Mounting System is designed and optimized from long accumulated structures designing

experience and numerous practical installation cases. It has been implemented in a large number of projects all over the world,

and every project is precisely and constantly calculated and simulated by Newsunpower’s engineering team.

The stability and safety of the system is guaranteed.The lighter weightof Aluminum profiles enables theshipment and the

installation more convenient and quicker.The anodized profile keeps the whole system durable and elegant,

which will also largely save the maintenance cost.

Product Description

Technical Information

Design Standard: JIS C8955:2011

Max Wind Speed: 60m/s

Max Snow Load: 1. 4 KN/m2

Installation Angle: 0~60°

Fastern Parts: SUS304(A2-70)

Materials: AL 6005-T5 Clear Anodized

Foundation: Concrete Block

Warranty: 10years

NSP Aluminum Mounting Benefits

Easy for installation

The design of pre-assemble for the main parts makes it easy and quick for installation.

Workers only need to open, push and pull the pre-assembled parts to finish the most portion

of the whole installation.The long holes on bases of legs also allows slight and flexible adjustment.

High Security
Designed as JISC8955:2011 Standard, double checked through SGS Test for tensile and bending
strength and Engineering Strength Calculation,Certified with Australian Standards AS/NZS1170.2.

High Durability
Aluminum alloy materials with 12μm anodization surface treatment is adopted to get excellent
anti-corrosion performance & higher durability.

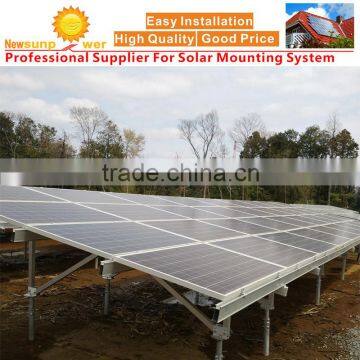

Installation Case 2MW-Ground Screw Aluminum Ground Mounting System

Aluminum Ground Mounting System Details

NSP Aluminum Mounting ADVANTAGE 1

High Pre-assembly on factory, saving about 50% installation time and cost.

NSP Aluminum Mounting ADVANTAGE 2

Optimized Connection Methods between supporting legs and portrait beams by using H-Shape Clamp Kit
to strengthen the flexible adjustability of mounting system.

NSP Aluminum Mounting ADVANTAGE 3

Optimizied Base.Strengthening the stability and achieving the adjustability.

NSP Aluminum Mounting ADVANTAGE 4

The optimized Flange for Ground Screw improves the flexible adjustability of on-site installation.
