Crawler Bulldozer (big Bulldozer Operating Weight: 37.2t, Engine Power: 235kw) of Bulldozer Price

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	SHANTUI
Model Number	SD32	Condition	New
Moving Type	Crawler Bulldozer	Machine Weight	37.2mm
Dimension(Long * Breadth * High)	688041303725mm	After-sales Service Provided	Engineers available to service machinery overseas

crawler bulldozer price

bulldozer price ih china

cheap bulldozer price

big bulldozer for sale

L×W×H (Ripper not included)	mm	6880×4130×3725
Operating weight (Ripper not included)	t	37.2
Engine	-	CumminsNTA855-C360S10
Rated power	kW/rpm	235/2000
Gradeability	°	30
Blade type	-	Straight tilt bladeSemi-U bladeAngle blade
Blade width	mm	Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140
Dozing capacity	m³	Straight tilt blade 10Semi-U blade 11.9Angle blade 6
Ma× drop below ground of blade	mm	560
Lift height of blade	mm	1560

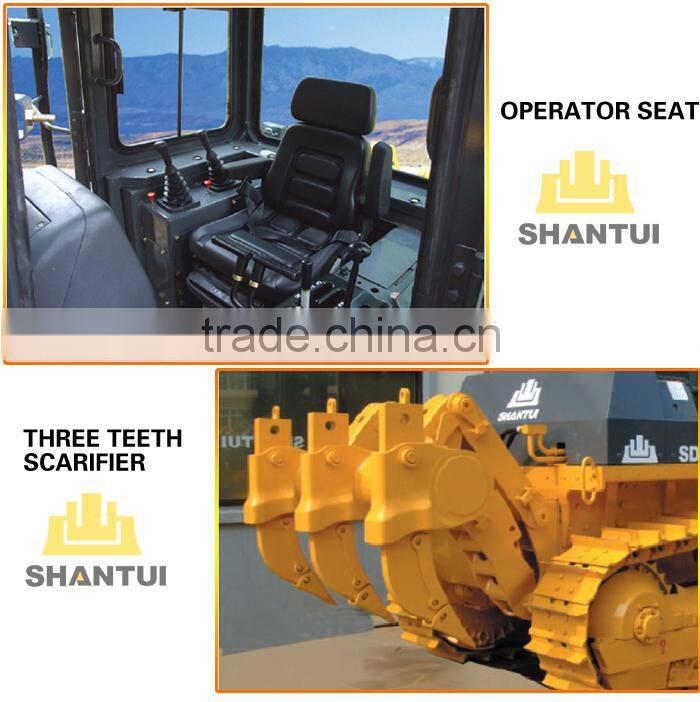

Ripper type	-	Single ripperThree-shank ripper
Ripping depth of ripper	mm	Single ripper 1250Three-shank ripper 842
Lifting height of ripper	mm	Single ripper 955Three-shank ripper 883
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	7
Number of track shoes (each side)	-	41
Width of track shoe	mm	560
Track gauge	mm	2140
Ground length and ground pressure	mm/MPa	3150-0.105
Pitch	mm	228.6
Forward speed	km/h	0–3.6
		0–6.6
		0–11.5
Reverse speed	km/h	0–4.4
		0–7.8
		0–13.5

Please contact me for more details.
