60 Ton Truck Dumper (dump Truck Sale for Cheap)

Product Name

Dump Truck

Product Model

HN3310P34B8M3

Place of Origin

Maan shan, Anhui, China

Kerb mass

14ton

Rated Payload

40-60ton

Drive Type

Left-Hand(optional RHD)

Drive Model

8x4

Vehicle Body Color

Yellow(optional)

Overall Dimension (LxWxH)mm

9000x2495x3340

Body interior (mm)

6200×2300×1200

Engine

Brand

Dongfeng Cummins

Model

L375 30

Max. Power (kw/r/min)

375/2200

Max. T Qrgue(Nm/r/min)

1480/1400

No. of cylinder

6

Bore x Stroke(mm)

114x145

Displacement

8900ml

Control Type

Mechanical

Air Cleaner

Dry Paper Element

Emission Standard

Euro II

Clutch

Type

Hydraulic control with air assisted

Plate diameter

dry single plate with diaphragm

outside diameter: 430 mm

Transmission

Brand

FAST GEAR

Model

RT-11509C (9-speed & 1-reverse)

Type

Mechanical

The Number of Axles

4

Rear Axle(drive axle)-Load

16000kgx2

Front Axle-Load

7500kgx2

Cabin type

Classic flat-roof (optional EF,CH,EH)

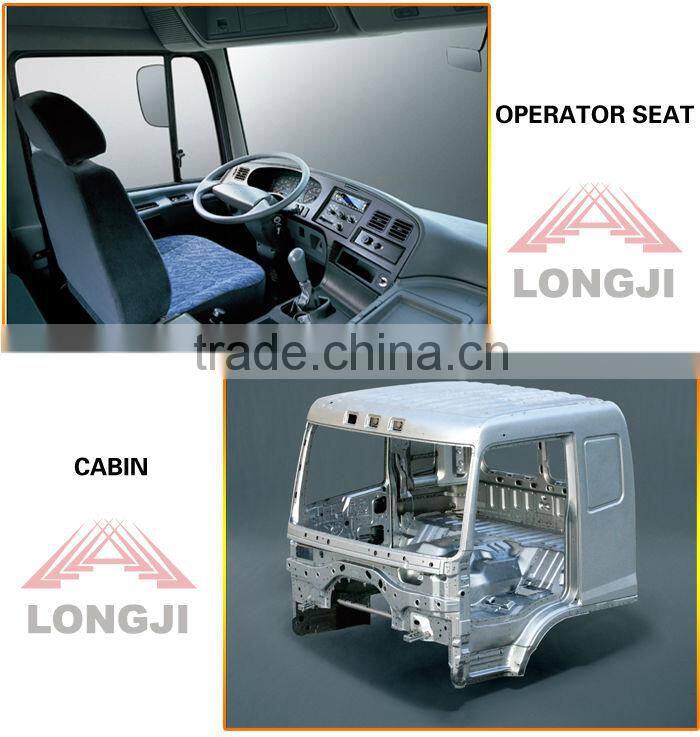

Cabin

With A/C, Radio, MP3,Bunk

Brake System

Service

Full air brake dual ciruit

Parking

Spring actugtor at rear wheels

Auxiliary

Exhaust break

Steering System

recirculation ball with integral power

assisted by oil

Wheelbase (mm)

1850+2850+1350

Wheel/Tire

Type

Bias/Radial tube/Radial tubeless

Model(optional)

11.00-20/11.00R20/11R22.5

12.00-20/12.00R20/12R22.5

Tire number

12+1

Fuel Tank

Volume(L)

350

Body Steel Thickness

Bottom 8mm/Side 5mm

Body Lifting System

Hydraulic Front Lift

Front overhang/Rear overhang(mm)

1370/1000

Approach/Departure Angle(°)

24/23

No. of steel spring(front/rear)

9/12

Max. Speed (km/h)

75
