CAMC 4x2 Tractor Truck (Engine Power: 340HP, Traction Weight: 40T) of Single Axles Tractor Truck

Product Name

Tractor Truck

Product Model

HN4180P34C4M3

Place of Origin

Maan shan, Anhui, China

Kerb mass

7.5ton

Rated Payload

40ton

Drive Type

Left-Hand(optional RHD)

Drive Model

4x2

Vehicle Body Color

Yellow(optional)

Overall Dimension (LxWxH)mm

6170x2500x3100

Engine

Brand

DONGFENG CUMMINS

Model

L340 30

Max. Power (kw/r/min)

250/2200

Max. T Qrgue(Nm/r/min)

1350/1400

No. of cylinder

6

Bore x Stroke(mm)

114 x145

Displacement

8900ml

Control Type

Mechanical

Air Cleaner

Dry Paper Element

Emission Standard

Euro II

Clutch

Type

Hydraulic control with air assisted

Plate diameter

dry single plate with diaphragm

outside diameter: 430 mm

Transmission

Brand

FAST GEAR

Model

RT-11509C (9-speed & 1-reverse)

Type

Mechanical

The Number of Axles

2

Rear Axle(drive axle)-Load

13000kg

Front Axle-Load

7500kg

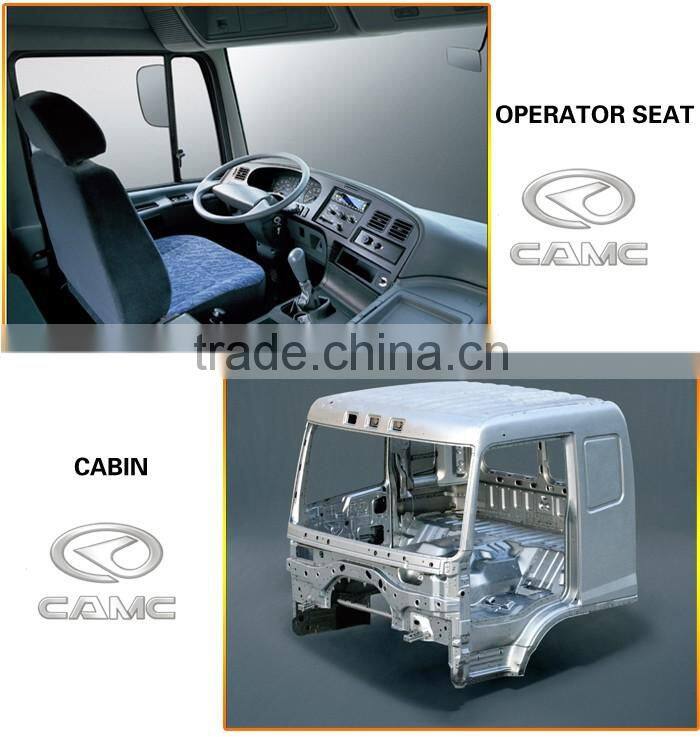

Cabin type

Classic flat-roof (optional EF,CH,EH)

Cabin

With A/C, Radio, MP3,Bunk

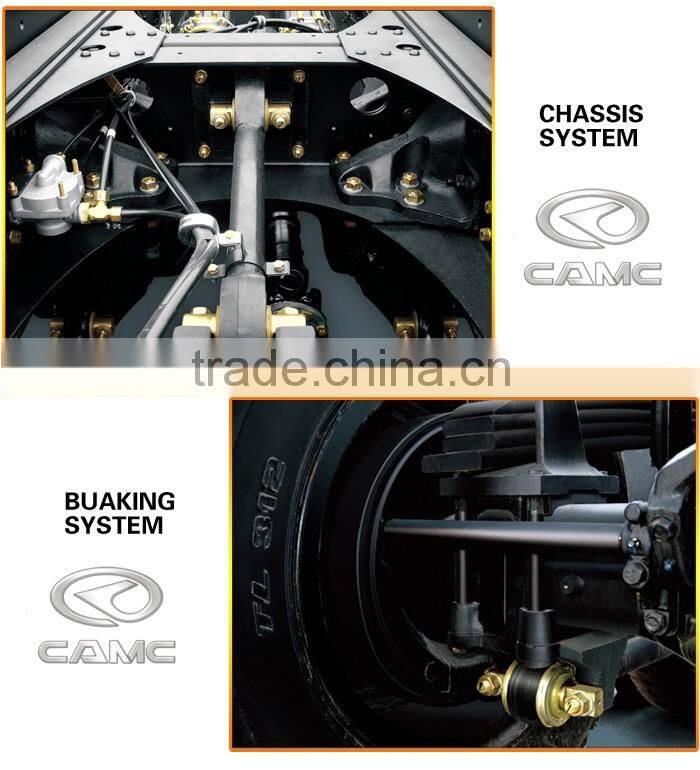

Brake System

Service

Full air brake dual ciruit

Parking

Spring actugtor at rear wheels

Auxiliary

Exhaust break

Steering System

recirculation ball with integral power

assisted by oil

Wheelbase (mm)

3400

Wheel/Tire

Type

Bias/Radial tube/Radial tubeless

Model(optional)

11.00-20/11.00R20/11R22.5

12.00-20/12.00R20/12R22.5

Tire number

6+1

Fuel Tank

Volume(L)

350

The working platform

With

Diversion cover

Optional

Front overhang/Rear overhang(mm)

1370/1020

Approach/Departure Angle(°)

24/23

No. of steel spring(front/rear)

9/9+6

Max. Speed (km/h)

90
