SZ680 6.8X~47X Trinocular Zoom stereo Microscope
- 300 Unit / Units per Month
- TIANJING
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Focus | |
| Model Number | SZ680-TP | Theory | Other, Stereo Microscope, Zoom stereo microscope | |
| Drawtube | Other, Trinocular, Trincolular |
Product Description

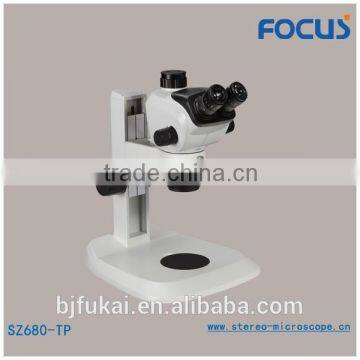

SZ 680 series Trinocular Zoom stereo Microscope
SZ 680 TP Trinocular Zoom stereo Microscope is trinocular without up and down lights,an all-new with Galilean Optical System. The quality is up to international level. Magnification range reaches 6.8X~47X .
Outstanding Ergonomic Design
1. 35° viewing angle, suitable for long-term sitting observation.
2.330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
3. Greenough optical system, built-in rotating shaft zoom system.
4. No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing.
5. Stereo angle for left & right light path is 12°,stereoscopic effect, large viewing field, high zoom ration.
6. High resolution, large depth of field, excellent color restoration and contrast.
7.Operation comfortable(manufactured by high-precision machine, excellent assembly
technology ).
8.High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
9.International Level Appearance Design
10. Elegant shape , high-end and integrated appearance design, comfortable operation.
Product Description
SZ 680 series Trinocular Zoom stereo Microscope
Main Technical Specification
Type | SZ 680-TP |
Magnification Range | 6.8X~47X |
Zoom Ratio | 1 : 6.8 |
Actual Field of Image Space | Φ23 mm |
Working Distance | 110 mm |
Stereo Angle | 12° |
Viewing Angle | 35° |
Interpupillary Distance Adjustment | 50 mm to 75 mm |
SZ680 Series Objective & Eye piece Parameter List( 6.8X~47X )
| Auxiliary Objective | 0.5X | 0.75X | 1X(Built-in) | 1.5X | 2X | |
| Working Distance | 189mm | 122mm | 110mm | 42mm | 36mm | |
| Eyepieces 10X /φ23mm | Magnification | 3.4 to 23.5 | 5.1 to 35.25 | 6.8 to 47 | 10.2 to 70.5 | 13.6 to 94 |
| Actual Field(mm) | 67.6 to 9.79 | 45.1 to 6.52 | 33.82 to 4.89 | 22.55 to 3.26 | 16.91 to 2.45 | |
| Eyepieces 15X /φ16mm | Magnification | 5.1 to 35.25 | 7.65 to 52.88 | 10.2 to 70.5 | 15.3 to 105.8 | 20.4 to 141 |
| Actual Field(mm) | 47.06 to 6.81 | 31.37 to 4.53 | 23.53 to 3.40 | 15.69 to 2.27 | 11.76 to 1.70 | |
| Eyepieces 20X /φ12mm | Magnification | 6.8 to 47 | 10.2 to 70.5 | 13.6 to 94 | 20.4 to 141 | 27.2 to 188 |
| Actual Field(mm) | 35.29 to 5.11 | 23.53 to 3.40 | 17.65 to 2.55 | 11.76 to 1.70 | 8.82 to 1.28 | |
| SZ680 Series Trinocular Zoom stereo Microscope Configuration List | |||
| Name | Type | Basic Specification | Weight(KG) |
| SZ 680 Series ( 5.1X~35.25.5X ,1:6.8) Size of the packing with Big Base:380X380X480mm | |||
| Stereo Zoom Microscope | SZ680-BP | Binocular, No light, Square column | 6.8 / 4.7 |
| Stereo Zoom Microscope | SZ680-B2L | Binocular, 3W-LED Light Souce with Up and Down( Wide Voltage),Square column. | 7.8 / 5.7 |
| Stereo Zoom Microscope | SZ680-TP | Trinocular,No light,Square Column. | 6.8 / 4.7 |
| Stereo Zoom Microscope | SZ680-T2L | Trinocular,3W-LED Light Souce with Up and Down( Wide Voltage),Square Column. | 7.8 / 5.7 |
| Stereo Zoom Microscope | SZ680-TP/S | Trinocular simultaneous imaging,No light,Square column | |
| Stereo Zoom Microscope | SZ680-T2L /S | Trinocular simultaneous imaging,3W-LED Light Souce with Up and Down( Wide Voltage),Square column. | |
| Stereo Zoom Microscope | SZ680-CL | Binocular,Coaxial epi-illumination(Wide Voltage), Square voltage. | |
| 10X Eyepiece | SZ680-10X | φ23mm,Adjustable diopter | |
| 20X Eyepiece | SZ680-20X | φ12mm,Adjustable diopter | |
| 10X Micrometer eyepiece | SZ680-10XF | φ23mm,Adjustable diopter(Refering to six kinds of Spec of the Catologue) | |
| Binocular Zoom Host | SZ680 Binocular Host,Without Eyepiece,Bracket Inner diameter 76mm | ||
| Trinocular Zoom Host | SZ680 Trinolcular Host,Without Eyepiece,Bracket Inner diameter 76mm | ||
| Trinocular Zoom Host | SZ680Trinocular simultaneous imaging Host, Without eyepiece,Bracket Inner diameter 76mm | ||
| Binocular Zoom Host (Coaxial epi-illumination) | SZ680Coaxial epi-illumination(Wide Voltage) Host,Without Eyepiece,Bracket Inner diameter 76mm | ||
| SZ650/SZ680/SZ780 Trinocular Zoom stereo Microscope General Accessories | |||
| Auxiliary objective | SZ 0.5X | SZ10210201 | |
| Auxiliary objective | SZ 2.0X | SZ10210501 | |
| Camera C interface | SZ 1.0X C | Invariable focus | SZ10260802 |
| Camera C interface | SZ 0.7X C | Invariable focus | SZ10260804 |
| Camera C interface | SZ 0.5X C | Variable focus | SZ10260801 |
| Electronic eyepiece interface | SZ-DZ | SZ10260803 | |
| SLR Camera Interface | SZ 1.0X P | Apply to the frame digital SLR camera of APS and Under APS format SLR camera. | SZ10260803 |
| SLR Camera Interface | SZ 2.0X P | Apply to 135 Full-frame digital SLR camera. | SZ10260803 |
| Ring lights up lap | Connect Circular fluorescent lamp with Circular LED Lamp. | LG104104 | |
| Round Column Bracket no Light | SZ10230101+ | ||
| SZ10230201 | |||
| Round Column Bracket with Light | 3W-LED Light Souce with Up and Down ( Wide Voltage)(Same price as the Halogen lamp,Single Adapt) | SZ10230102+ | |
| SZ10230202 | |||
| Optional(Base with adjectable reflector) | Viewing the embryo for its rotate fuction | ||
| Square Column no light Bracket | SZ10230301 | ||
| Square Column with light Bracket | 3W-LED Light Souce with Up and Down ( Wide Voltage) | SZ10230302 | |
| Single crossbar universal stand | Contain Focusing parts. | SZ10710301+ | |
| SZ10230201 | |||
| Rocker gimbal (aluminum alloy) (see a big object) | Contain Focusing Parts and Up 3W-LED Light Souce ( Wide Voltage) | SZ10710303+ SZ10230201 | |
Product Structure
All Series
| SZ650/680/780 Main Technical Specification | |||
| Model | SZ650 | SZ680 | SZ780 |
| Objectives Zoom Range | 0.7X-4.5X | 0.68X-4.7X | 0.66X-5.1X |
| Zoom Ratio | 1:6.5 | 1:6.8 | 1:7.7 |
| Field Diameter (mm) | Φ22 | Φ23 | Φ24 |
| Working Distance (mm) | 110 | 110 | 110 |
| Stereo Angle ( °) | 12 | 12 | 12 |
| Viewing Angle ( °) | 40 | 35 | 35 |
| Interpupillary Adjustable Distance (mm) | 50-75 | 50-75 | 50-75 |
| Video Output Distribution | N/A | 100%;50%/50% | 100%;50%/50% |
| Guide Rail Stand Focusing Distance (mm) | 80 | ||
| Pillar Stand Focusing Distance (mm) | 115 | ||
External Dimension
System Layout
Advantages
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit us:
3.OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. High quality, reasonable and competitive price, fast lead time.
5. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
6. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
7. Payment:
You can pay for the order via:T/T,L/C,D/P and Western Union.
8.Shipping
We have strong cooperation with EMS and UPS.
You also can choose your own shipping forwarder.
