SZ650 10.5X~67.5X Stereo Zoom Microscope for Binocular Microscope
- 300 Unit / Units per Month
- TIANJIN
- T/T Credit Card PayPal
You May Like
-
SZ650 7X-45X Stereo Zoom Microscope for Binocular Microscope Factory
-
SZ650 14X~90X Binocular Stereo Zoom Microscope for Binocular Microscope
-
SZ650 15.8X~105.8X Zoom stereo Microscope
-
SZ650 21X~135X Zoom stereo Microscope Factory
-
SZ650 28X~180X Binocular Zoom stereo Microscope
-
SZ650 28X~180X Boom stand Microscope
Product Details
| Place of Origin | Beijing, China | Brand Name | Focus | |
| Model Number | SZ650-B2LS | Theory | Other, Stereo Microscope, Zoom stereo microscope | |
| Drawtube | Other, Binocular, Binocular |
Product Description

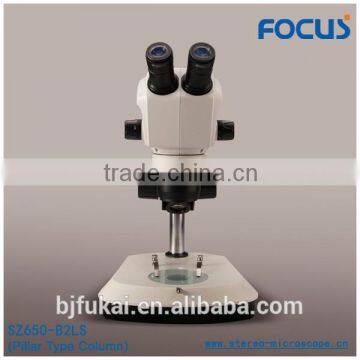

SZ 650 series Stereo Zoom Microscope for Binocular Microscope
SZ 650 B2LS stereo zoom microscope is binocular with up and down lights, small base, an all-new with Galilean Optical System. The quality is up to international level. Magnification range reaches 10.5X~67.5X .
Outstanding Ergonomic Design
1. 40° viewing angle, suitable for long-term sitting observation.
2.330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
3. Greenough optical system, built-in rotating shaft zoom system.
4. No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing.
5. Stereo angle for left & right light path is 12°,stereoscopic effect, large viewing field, high zoom ration.
6. High resolution, large depth of field, excellent color restoration and contrast.
7.Operation comfortable(manufactured by high-precision machine, excellent assembly
technology ).
8.High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
9.International Level Appearance Design
10. Elegant shape , high-end and integrated appearance design, comfortable operation.
Product Description
SZ 650 series Stereo Zoom Microscope for Binocular Microscope
Main Technical Specification
Type | SZ 650-B2LS |
Magnification Range | 10.5X~67.5X |
Zoom Ratio | 1 : 6.5 |
Actual Field of Image Space | Φ22 mm |
Working Distance | 122 mm |
Stereo Angle | 12° |
Viewing Angle | 40° |
Interpupillary Distance Adjustment | 50 mm to 75 mm |
SZ650 Series Objective & Eye piece Parameter List ( 10.5X~67.5X )
)
Auxiliary Objective | 0.5X | 0.75X | 1X(Built-in) | 1.5X | 2X | |
Working Distance | 189mm | 122mm | 110mm | 42mm | 36mm | |
Eyepieces 10X φ22mm | Magnification | 3.5 to 22.5X | 5.25 to 33.75X | 7 to 45X | 10.5 to 67.5X | 14 to 90X |
Actual Field(mm) | 62.9 to 9.8X | 41.9 to 6.52X | 31.43 to 4.89X | 20.95 to 3.26 X | 15.71 to 2.44X | |
Eyepieces 15X /φ16mm | Magnification | 5.25 to 33.75X | 7.88 to 50.63X | 10.5 to 67.5X | 15.8 to 105.8X | 21 to 135X |
Actual Field(mm) | 45.71 to 7.11X | 30.48 to 4.74X | 22.86 to 3.56X | 15.24 to 2.37 X | 11.43 to 1.78X | |
Eyepieces 20X/φ12mm | Magnification | 7 to 45X | 10.5 to 67.5X | 14 to 90X | 21 to 135X | 28 to 180X |
Actual Field | 34.28 to 5.33X | 22.85 to 3.55X | 17.14 to 2.67X | 11.42 to 1.78 X | 8.57 to 1.33X | |
| SZ650 Series Stereo Zoomo Microscope Configuration List | |||
| Name | Type | Basic Specification | Weight(KG) |
| SZ 650 Series ( 10.5X~67.5X ,1:6.4) Size of the packing with Big Base:380X380X480mm | |||
| Stereo Zoom Microscope | SZ650-BPS | Binocular,No light Souce,Square Column with small base. | |
| Stereo Zoom Microscope | SZ650-B2LS | Binocular,3W-LED Light Souce with Up and Down( Wide Voltage),Pillar Type Column with Small Base | |
| Stereo Zoom Microscope | SZ650-BP | Binocular, No light Source,Square Column. | |
| Stereo Zoom Microscope | SZ650-B2L | Binocular,3W-LED Light Souce with Up and Down( Wide Voltage),Square Column | |
| 10X Eyepiece | SZ680-10X | φ22mm,Adjustable diopter | |
| 20X Eyepiece | SZ680-20X | φ12mm,Adjustable diopter | |
| 10X Micrometer eyepiece | SZ680-10XF | φ22mm,Adjustable diopter (Refering to six kinds of Spec of the Catologue) | |
| Binocular Zoom Host | Without Eyepiece,Bracket Inner diameter 76mm | ||
| SZ650/SZ680/SZ690/SZ780General Accessories | |||
| Additional objective | SZ 0.5X | SZ10210201 | |
| Additional objective | SZ 2.0X | SZ10210501 | |
| Camera C interface | SZ 1.0X C | Invariable focus | SZ10260802 |
| Camera C interface | SZ 0.7X C | Invariable focus | SZ10260804 |
| Camera C interface | SZ 0.5X C | Variable focus | SZ10260801 |
| Electronic eyepiece interface | SZ-DZ | SZ10260803 | |
| SLR Camera Interface | SZ 1.0X P | Apply to the frame digital SLR camera of APS and Under APS format SLR camera. | SZ10260803 |
| SLR Camera Interface | SZ 2.0X P | Apply to 135 Full-frame digital SLR camera. | SZ10260803 |
| Ring lights up lap | Connect Circular fluorescent lamp with Circular LED Lamp. | LG104104 | |
| Round Column Bracket no Light | SZ10230101+ | ||
| SZ10230201 | |||
| Round Column Bracket with Light | 3W-LED Light Souce with Up and Down (Same price as the Halogen lamp,Single Adapt) | SZ10230102+ | |
| SZ10230202 | |||
| Optional(Base with adjectable reflector) | Viewing the embryo for its rotate fuction | ||
| Square Column no light Bracket | SZ10230301 | ||
| Square Column with light Bracket | 3W-LED Light Souce with Up and Down ( Wide Voltage) | SZ10230302 | |
| Single crossbar universal stand | Contain Focusing parts. | SZ10710301+ | |
| SZ10230201 | |||
| Rocker gimbal (aluminum alloy) (see a big object) | Contain Focusing Parts and Up 3W-LED Light Souce ( Wide Voltage) | SZ10710303+ | |
| SZ10230201 | |||
Product Structure
Other Series
External Dimension
System Layout
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit us:
3.OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. High quality, reasonable and competitive price, fast lead time.
5. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
6. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
7. Payment:
You can pay for the order via:T/T,L/C,D/P and Western Union.
8.Shipping
We have strong cooperation with EMS and UPS.
You also can choose your own shipping forwarder.
