Home > Products > PU/TPU FIRE HOSE > pu Lined Fire Hose

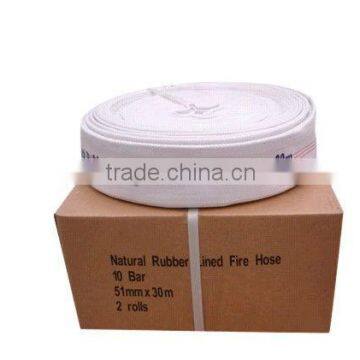

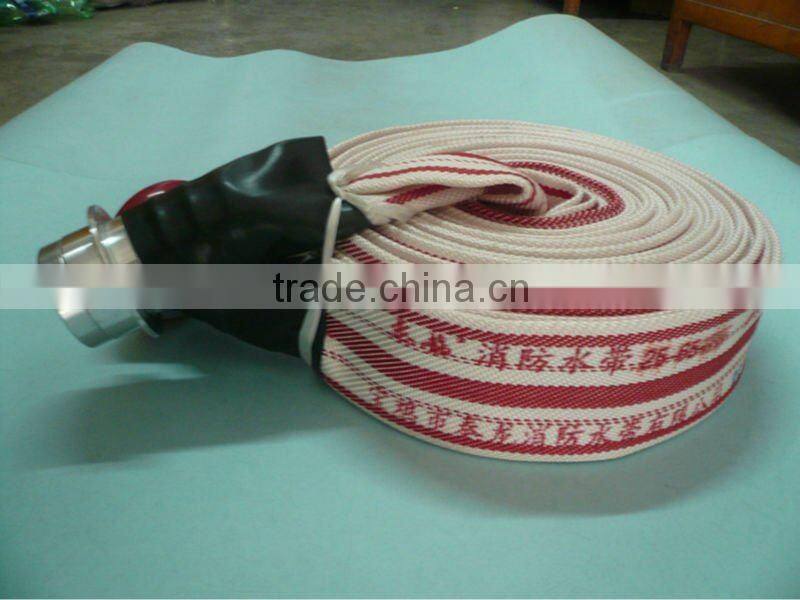

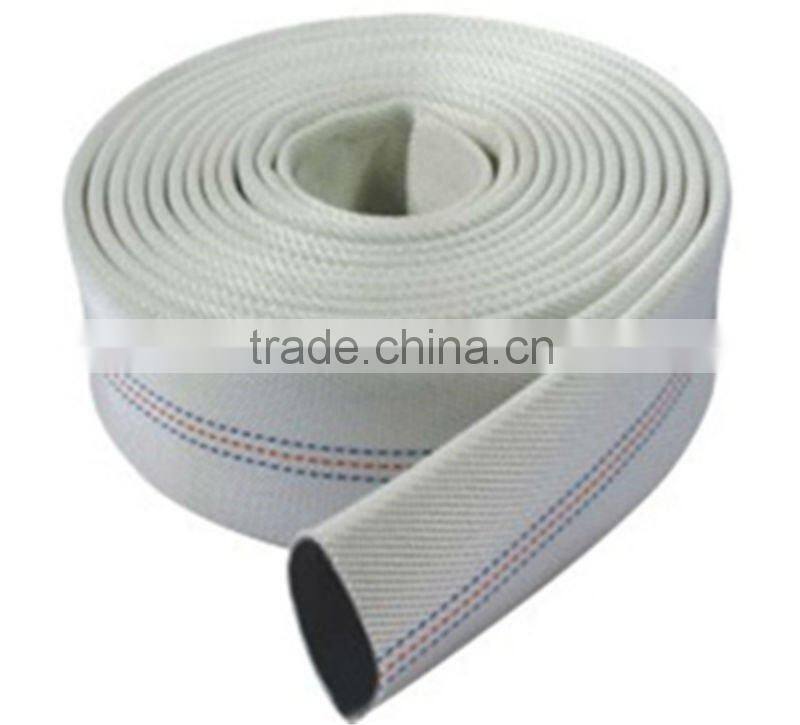

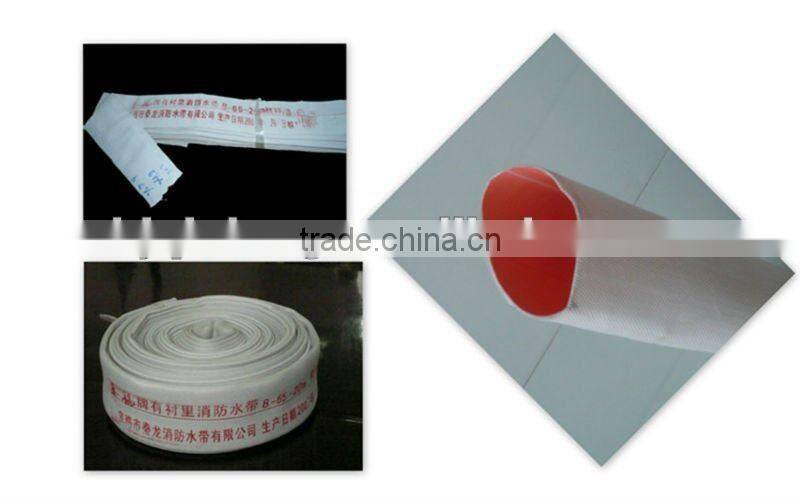

pu Lined Fire Hose
- tianjin/shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | qinlong | |
| Model Number | 0.8,1.0,1.3,1.6,2,2.5,3Mpa |
Product Description
| Model | Diameter | Working Pressure (MPa/Bar/Psi) | Test Pressure (MPa/Bar/Psi) | Bursting Pressure(MPa/Bar/Psi) | Length | |
| Inner Dia (inch) | Inner Dia (mm) | |||||
| C 8 | 1.5 | 40 | 0.8 / 8/120 | 1.6/16/240 | 2.4/24/360 | 15m-50m |
| 2 | 50 | |||||
| 2.5 | 65 | |||||
| 3.2 | 80 | |||||
| 4 | 100 | |||||
| C 10 | 1.5 | 40 | 1 / 10/150 | 2/21/300 | 3/30/450 | 15m-50m |
| 2 | 50 | |||||
| 2.5 | 65 | |||||
| 3.2 | 80 | |||||
| 4 | 100 | |||||
| C 13 | 1 | 25 | 1.3 / 13/190 | 2.6/26/380 | 3.9/39/570 | 15m-50m |
| 1.5 | 40 | |||||
| 2 | 50 | |||||
| 2.5 | 65 | |||||
| 3.2 | 80 | |||||
| 4 | 100 | |||||
| C 16 | 2 | 50 | 1.6/16/240 | 3.2/32/480 | 4.8/48/720 | 15m-50m |
| 2.5 | 65 | |||||
| 3.2 | 80 | |||||
| C20 | 2 | 50 | 2.0/20/300 | 4.0/40/600 | 6.0/60/900 | 15m-50m |
| 2.5 | 65 | |||||
| 3 | 80 | |||||
| 4 | 100 | |||||
| 6 | 150 | |||||
Feature
l all polyester single jacketed product
l light weight and compact(approximately half the weight of standard rubber lined single jacket hose)
l highly resistant to most chemicals, petrol products
l erosion, grease, acid, hydrolytic, aging
l extreme weather conditions(-60°C to 60°C)
l smooth inner waterway, yielding an extremely low friction loss for maximum flow
l Easy to roll and carry, good for quick installation and emergence use
l Also can transport water and other chemical solution
Application
l Industrial and municipal fire brigades
l Military
l Marine fire fighting
l Interior rack and reel hose
l Commercial and civil engineering
l Filed irrigation and garden irrigation
l Also can be used to transport drinking water
Couplings available
Storz couplings & John Morris couplings & American couplings or other type on your request.
Color
Orange,red and black are available or others on your request.
Standard
Fire hose manufactured to this specification shall meet and exceed all performance requirements of CCC,ISO9001:2008.
Standard length
15m,20m,25m,30m,40m,50m
Other length on your request.
