Home > Products > PVC FIRE HOSE > Hydraulic Hose

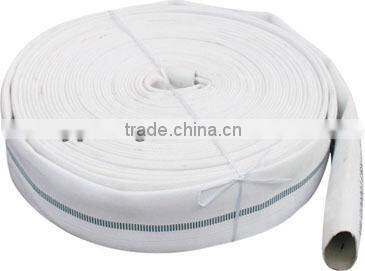

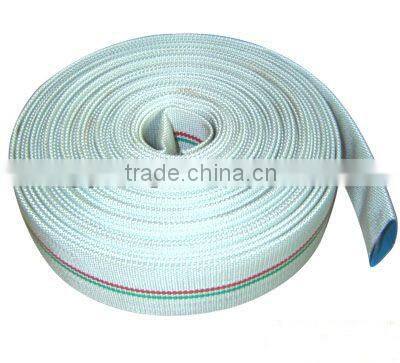

Hydraulic Hose
- Tianjin/Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Qinlong | |
| Model Number | 0.6,0.8,1.0,1.3,1.6,2.0,2.5,3 MPa | Material | PVC | |
| Specification | 1",1.5",2",2.5",3",4" | Length | 10-50m | |
| Thickness | 0.30~0.70mm | Standard | C6,C8,C10,C16,C20,C25 |
Product Description
FEATURE:
1)high pressure resistance,high tenacity
2)temperature range from –50 °C up to +60 °C
3)wear-resisting aging quality resistance
4)light weight and high flexible
good flexibility smooth smearing layer
5)non-permeable
Technical Parameters
Model | Diameter | Working Pressure (MPa/Bar/Psi) | Test Pressure (MPa/Bar/Psi) | Burst Pressure (MPa/Bar/Psi) |
Length | |
Inner Dia (inch) | Inner Dia (mm) | |||||
C 8
| 1.5 | 40 |
0.8 / 8/120 |
1.6/16//240 |
2.4/24/360 |
10m-50m |
2 | 50 | |||||
2.5 | 65 | |||||
3.2 | 80 | |||||
4 | 100 | |||||
C 10
| 1.5 | 40 |
1 / 10/150 |
2/20//300 |
3/30/450 |
10m-50m |
2 | 50 | |||||
2.5 | 65 | |||||
3.2 | 80 | |||||
4 | 100 | |||||
C 13
| 1 | 25 |
1.3 / 13/190 |
2.6/26/380 |
3.9/39/570 |
10m-50m |
1.5 | 40 | |||||
2 | 50 | |||||
2.5 | 65 | |||||
3.2 | 80 | |||||
4 | 100 | |||||
C 16
| 2 | 50 |
1.6/16/240 |
3.2/32//480 |
4.8/48/720 |
10m-50m |
2.5 | 65 | |||||
3.2 | 80 | |||||
C 20 | 2 | 50 |
2 / 20/300 |
4/40/600 |
6/60/3900 |
10m-50m |
2.5 | 65 | |||||
3.2 | 80 | |||||

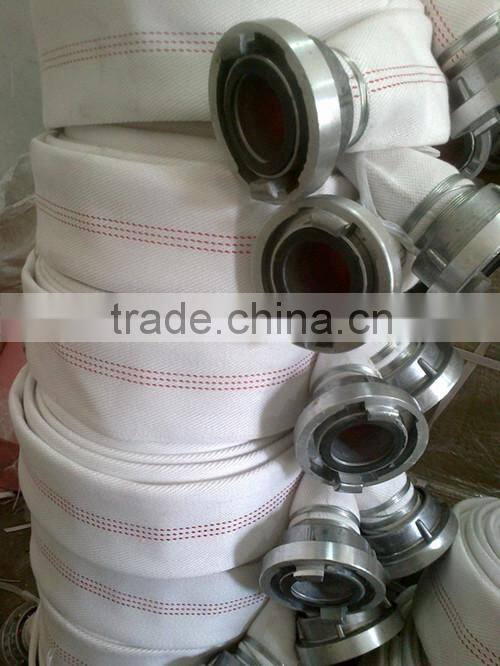

We can joint hose with couplings for you without any charge!
