Rough Finish Epoxy Polyester Powder Coating

 Main features

1.Good leveling property

2. High gloss;

3. Excellent physical and mechanical performance;

4. Excellent resistance to chemicals;

5. Good resistance to heat.

 Application

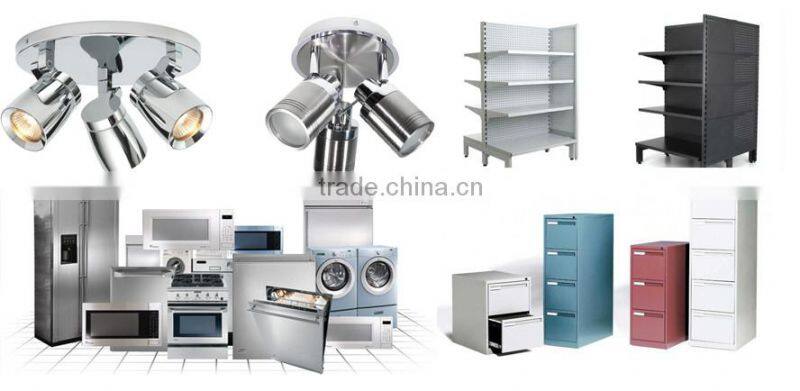

It is applicable to the coating of all household appliances, instruments, meters, light industrial products, office equipment, library equipment, electromechanical equipment and other metal products.

Type of powder coating

Technical indexes

Surface prepartion

The corresponding treatment method should be used based on the substrates, such as phosphating,       chromizing,shot blasting or blast cleaning

1. The surface roughness should be 30 ~75 μm if reaching Grade Sa2.5 by shot blasting or blast cleaning.

2. Phosphating: degreasing- derusting- neutralizing- surface control- phosphating- passivating

Appearance of phosphating film: The phosphating film should be crystallized densely, continuously and evenly.

3. Chromizing: degreasing- rinsing- immersion cleaning- deoxidating- rinsing- chromizing

Method of Application

It is applicable to high voltage electrostatic spraying

Spraying voltage: 50-90 kV; air pressure for spraying: 0.1-0.2 Mpa;

Distance between the gun and workpiece: 200-300 mm

Curing condition: 200℃/15 minutes or customized according to customers’ requirements.

Additional coating: spraying and curing should be made after polishing the omitted part with sand paper and spraying the whole surface.
