Electrostatic Names Paints Chrome Powder Coating Price

Main Features

1. Excellent light and weather resistance;

2. Good mechanical performance;

3. Stable physical mechanical and chemical performance;

4. Good gloss and gloss retention;

5. Good durability and resistance to heat and chalking.

Application

 A full range of polyester powder coatings suitable for outdoor applications such as architectural metalwork, signage, street furniture and other applications that require light and weather resistance.

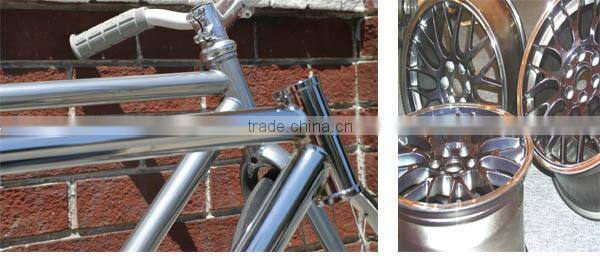

Typical applications include:  Shop Signs, Gates & Railings, Motorbike Wheels,

    Security Grills, Garden Tables & Chairs, Outdoor Applications.

 Type of powder coatings

Technical indexes

Surface prepartion

The corresponding treatment method should be used based on the substrates, such as phosphating,

  chromizing, shot blasting or blast cleaning

1. The surface roughness should be 30 ~75 μm if reaching Grade Sa2.5 by shot blasting or blast cleaning.

2. Phosphating: degreasing- derusting- neutralizing- surface control- phosphating- passivating

   Appearance of phosphating film: The phosphating film should be crystallized densely,

    continuously and evenly.

3. Chromizing: degreasing- rinsing- immersion cleaning- deoxidating- rinsing- chromizing

Method of Application

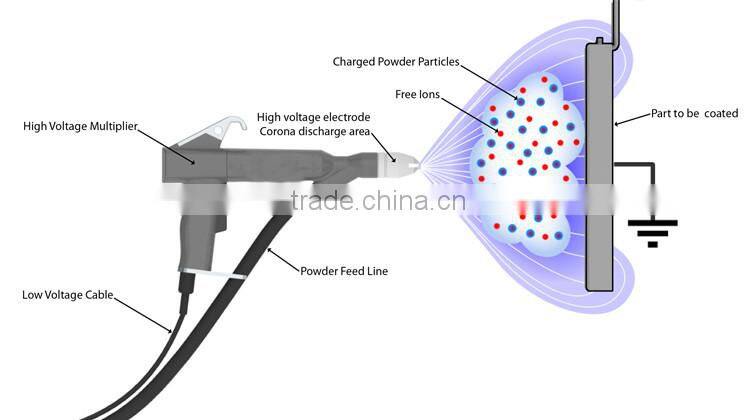

1. high voltage electrostatic spraying

2.Spraying voltage: 50-90 kV; air pressure for spraying: 0.1-0.2 Mpa;

3. Distance between the gun and workpiece: 200-300 mm

4. Curing condition: 200℃/10-15 minutes or customized based on the requirements.

5.Additional coating: spraying and curing should be made after polishing the omitted part

   with sand paper and spraying the whole surface.

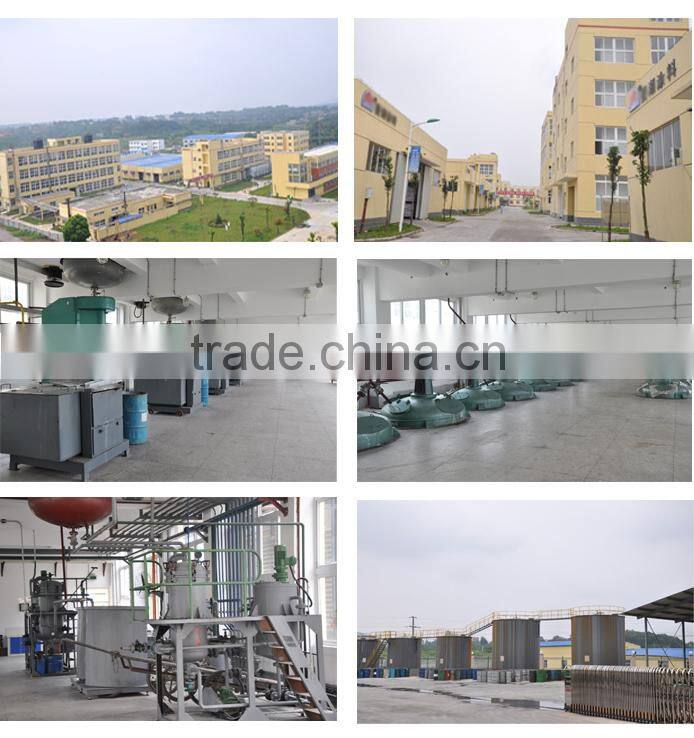

Shanghai NH Trade Co., Ltd. is a manufacturer of oil paint with well-equipped testing equip-ment and strong technical force. Our company was established in 2004 and registered the independent paint brand of "NH New Emperor" in 2008.

Till now,We have strongly enhanced our market in chemical,textile,argriculture,building,biological,

automotive field and so on.Our company has the industry`s most advanced and sophisticated production facilities.Strict supervision on the quality of our products will make sure you`re 100% satisfied with us.

In NH, you could enjoy these services:
If you have any problem in technique or paints, we would help you winthin 24 hrs;
We could offer a video of construction if you need.
We could offer technical guidance. If your project have trouble in
the construction technique, we could arrange a technical person

to your country to demonstrate for you. And we even could
arrange a construction team to help you if your project is big enough.

1.What is your minimum order?

We are the powder coating manufacturer, so we accept the MOQ 1 tons.

2.How about price?

It depends on the colors, gloss and effects. Generally speaking we offer the price base on FOB NINGBO or SHANGHAI port.

wholesale price for you with bulk order!

3. Could I get sample for test?

Yes, according to company policy, we could provide you with a 1 kg powder sample, if you would like to pay the freight.
