GYK-C High Speed Automatic 3 Color Printing Slotting Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | |
| Packaging Type | Film | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V/50HZ | Power | 30-45KW | |
| Place of Origin | Shanghai, China | Brand Name | QS | |
| Model Number | GYK-C | Weight | 13.5T-23.5T | |
| Dimension(L*W*H) | See specific model | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
GYK-C High Speed Automatic 3 Color Printing Slotting Machine
Feeding unit

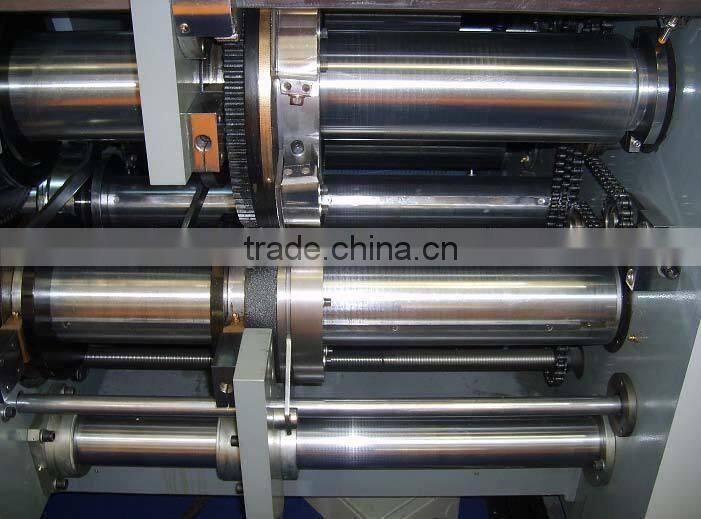

Printing unit

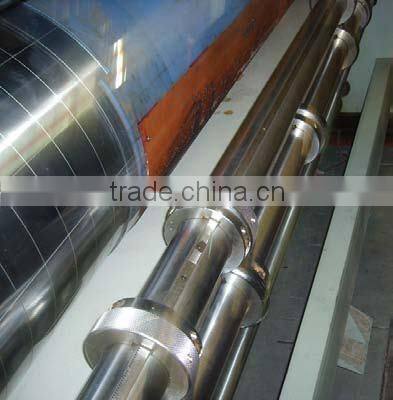

Slotting unit
Stacking Unit
Available Industry: carton factory, printing factory, package factory
Main feature: produce variety of carton, such as fruit carton, beer carton, drink carton, food carton, garment carton, electronics carton and so on.
General features
The machine is manufactured with the aims to meet the tough operation requirement, reliable ,good function and safe, Hence ,standard parts ,fast set-up and easy to operate are our advantages
Best material and part are used
Transmissiongear are hardened and ground (hardness>60HRC)
Automatic zero setting and return to the pre-set position after open
Chrome plated shafts
The machine is also equipped with an automatic lubricating system that keeps the lubricant levels in each unit uniform at all times
PLC with multifunction touch screen control
European standard specifications for all electrical and pneumatic components
Repeat orders storing and recalling for fast set-up
Main motor is inter-locked, only operatable when units are locked close
GYK-C HIGH SPEED PRINTING SLOTTING MACHINE
Model | GYK--C-1200*2800 | GYK--C-1400*2800 | GYK--C-1600*3000 |
Color | Three-color | Three-color | Three-color |
Max production speed(page/min) | 140 | 120 | 110 |
Max feeding size (mm) | 1200*2500 | 1400*2500 | 1600*2700 |
Skip feeding(mm) | 1400* 2500 | 1600* 2500 | 1800* 2700 |
Min. feeding size(mm) | 350*650 | 400*650 | 450*650 |
Max. printing size(mm) | 1150*2400 | 1350*2400 | 1550*2600 |
Suitable paperboard thickness(mm) | 2-12 | 2-12 | 2-12 |
Minimum grooving height(MM) | 100 | 100 | 100 |
Maximum grooving depth | 0-300 | 0-350 | 0-400 |
Standard printing plate thickness(mm) | 7 | 7 | 7 |
Axial drifting of plate roller(mm) | ±10 | ±10 | ±10 |
Minimal slotting opens a spur (MM) )Set a knife right (long * width of long * width *) Oppose a knife (long * width of long * width *) |
160*160*160*160 |
170*170*170*170 |
180*180*180*180 |
250*60*250*60 | 260*60*260*60 | 270*60*270*60 | |
Power of main motor(kw) | 22 | 30 | 35 |
Overall power (kw) | 30 | 40 | 45 |
(In addition the machine had better have stacking machine supporting together. Otherwise the speed to no hurry after paper.)
