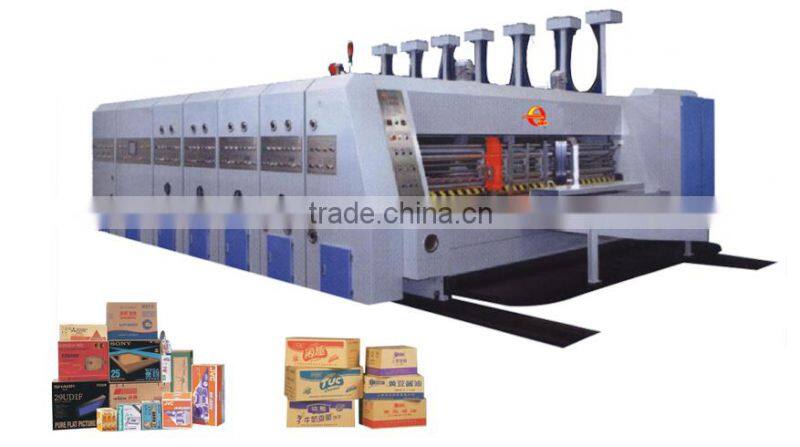

GYMK-1200*2400 automatic carton printing slotting and die-cuting machine

Introduction for integral machine

1.Machine adopts PLC program control, the drive to adjust the phase body, touch screen and button dual system operation; Controllable roller intelligent automatic landing, the Indian version scrub the memory reset automatically, personalized Qi paper, fixed to complete the Auto Standby function.
2.Main drive gear made of high quality alloy steel (20CrMnTi), by program-controlled carburizing and quenching, grinding treatment, the accuracy can be achieved six high hardness, high-precision gears (tooth surface hardness HRC58-62).
3.Touch-screen display setting value, the control plate of each group and the position of the adjustment slot knives; can set the production rate, and a count and prompts.
4.Pull the paper delivery round of self-locking quick transfer function; avoid the destruction of the screw fastening devices operating on the roller and a great inconvenience.
5.Application of free connection device, eliminating the gap generated by the traditional connection to maintain long-term precision printing chromatic.
6.Gearing body splash with spray devices; lubrication system automatically cycles and installation of seepage oil bodies.
The units used between the cylinder lock and locking machine with a strong self-locking mechanism, to ensure the stability of the unit.

Paper feeder

Negative pressure vacuum suction feed system and feed with skip function.
1.Adopt imported light rail linear bearing feeding, so that paper feeding is correct, and smooth.
2.Automatic document feeder institutions simultaneously with the ink roller in order to work effectively to ensure the printing quality, reduce waste and defective products occur.
3.In addition to setting the cleaning litter institutions, and in accordance with the actual situation of wind adjustment.
4.Power adjustment bezel around, working position tailgate can be set free paper manual or electric homogeneous way, the operating frequency can be set arbitrarily.
5.Feed roller is designed around the axis structure; the soft tube is combined with both a good stretch and abrasion resistance.
6.Data can display machine speed and production quantity.

Servo edge feeder institutions

1.Use with fast response, high positioning accuracy, system stability, long service life of the servo motor, replace mechanical cam with electronic cam control.
2.Feeding the servo motor shaft axle and connected by timing belt, eliminating the work of any of the feed roller gaps, improve feed accuracy, and avoid wandering around the phenomenon of cardboard.
Unique quick-change semi-round structure, to ensure the consistency of feed location, feed wheel circumference to avoid inconsistencies in surface wear and replacement is very easy and fast.

Printing Part

1.Printing phase, the axial position with PLC programmable logic controller to control; machine touch screen, power button and dual action; print roller with automatic reset after wiping version of the memory function.
2.Linkage with the feeder roller lift, open or stopped when the feed roller and the printing plate according to the order automatically from, together.
3.Pull transfer paper designed to self-locking quick round of transfer function, avoid the destruction of the top compression roller fixtures.
4.Operations set the ink rollers and ink pump start and stop function; Indian Roller phase, digital display to adjust the axial position.
5.Department of foot plate electric switch device can be quickly linked version, adjusted to facilitate the work of changing version and scrub.
6.Printing phase with magnetic clutch brake mechanism, separation machine gear position can be automatically locked to prevent the loss of zero plate.
7.Department of device penetration ink splash pad and back across agencies, to prevent water overflow, and fly ink of ink printing quality.
8.Print board Roller, embossing rollers made of high quality alloy steel, the surface grinding and hard chrome plating; dynamic balance at coarse and fine adjustment on the two devices to ensure the best balance.
9.Number of significant features with planetary gear-type Phase adjustment of printing plate roller for electric phase adjustments.
Has several significant features of the axial fine-tune the body, the Indian Roller axial electric adjustment.

Slotting Part

Configuration self-locking preload adjusting structure quickly to ensure that the disk, between the long axis of the precision, the pressure line slowed the destruction of cardboard.
1.Parcel line of high quality polyurethane wheels pressure to protect the board from damage plasticity.
2.About synchronization with the axial electric shift linkage, so bottom line pressing roller, the upper and lower slot knife, guide roller synchronization adjustment.
3.Number of significant features with planetary gear-type phase adjusting mechanism, the phase of the slot, slotted box high for electric adjustment.
4.Selection of high quality alloy steel slotted knife, tooth blade width 7mm.
5.Equipped with self-lubricating wear-resistant guide block to ensure the pressure wire wheel, slotted knife wheel, the shift guide roller to the right and increase durability.
6.Creasing wheel, slotted wheel made of high quality alloy steel, the surface grinding and hard chrome plating; dynamic balance at coarse and fine adjustment on the two devices to ensure the best balance.
7.Slotted panel operation with the Ministry of feed on, off and host to move the button, with multi-point adjustment operation function. (Without cutting)

Stacking Part

1.Splicing can be set to automatic and manual arm any operation, a separate paper, then transfer belt, easy to select the number of connected paper arm.
2.Transfer function with brake motor movements; column configuration on both sides of heavy bodies fall protection; to maintain a safe working machine working position.
3.Ministry stacking tray can be configured to take automatic or manual operation, allowing the stacking height of 1600mm.
4.Conveyor belt use wrinkles slip type, the transfer board when the non-slip smoothly.
Pneumatic connection tray in cardboard packing to a predetermined altitude, take care of paper paper pop-up, boosting the board.

Main technical parameter

The Buyer always asks the price from us at the beginning. There are different conditions
and stages.
Different conditions and stages, different questions and solutions.

1. If the buyer also want to make the corrugated cardboard by yourselves, please offer following
details to match the right machines for you.
1) Capacity/output-----How many pieces cardboards per day? It determs the speed and configurations of this production line.
2) How many plies of your cardboard?-----3ply, 5ply or 7ply?
3) Cardboard/Paper Roll width----Model selection. (From 1300mm to 2500mm)

2. If the buyer only needs to make the cartons as well as the new factory, please offer following
details to match the right machines.
1) Capacity?-----Speed, configuration and machine selection.
2) The maximum size of the carton you need---Model selection. (L+W)*2+50MM will be the maximum length. You can calculate it by yourselves.
3) How many color printing?-----Different printing number, different prices.
4) Do you need to make abnormal/odd shape of carton box? If yes, you need to buy the die-cutting machine. Please also offer the scope of the odd shape case, color printing or not, how many colors and other details.
5) Do you still need some supporting machines? Such as thin blade slitter and scorer, gluing machine and stapler, etc.

3. If you are the old factory and just want to change some machines, you only need to offer following details:
1) The model selection
2) The speed you want
3) If need the printing function, please let us know how many color printing you need.

4. About Warranty
ONE Year.
Within one year, any problems caused by our machine's physical issues, we will send
the spare parts to you for free. You can repair them by those spare parts.
You only need to bear the transportation cost.
Generally speaking, as long as you use them reasonably, they can work for you well at least 10 years.

5. About the after-sale Services.
1) You can send your workers or technicians to China to learn to how to operate the machines.
2) We will send our technicians to your country to provide the installation and debugging servies
for you. During that, our technicians will teach your workers how to operate them.
You need to undertake the round trip airfare, local food, accommodation, transportation and other local cost.
Meanwhile, you need to pay USD$80/day for per technician.
3) In the course of the production at your side, if you need our technicians to help you, just follow above points.

6. About more services or integrated solutions, please contact us via sales(at).
