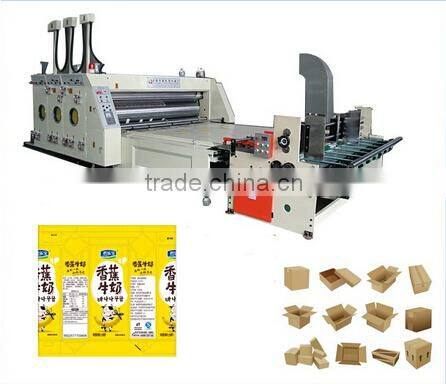

ZSYC Automatic Printing and Slotting Machine Quality Choice

Automatic paper feeder is a constantly paper feeding device researched and produced for incontinuous mass

productionof the carton box printer, molding machine and die-cutter of the old chain paper feeding in carton box factory. This can improve manually incontinuous paper feeding and ensure the straight paper feeding, which not only raise working efficiency, but also reduce the labor strength and waste rate.

Main specifications:

Automatic Paper feeding section

1.Cardboard size adjustment adopts screw roller adjusting system, one man operating, simple and fast.
2.Available for adjustable paper platform, more adaptable for kinds of cardboard, stable and precise paper feeding.
3.Adopts advanced seamless rubber strap, which has big friction, long life, low voice, easy maintenance and high economic efficiency.
1.Double stretch power control, convenient and reliable.
2.Transmission roll adopts decorative design roll, which increase the friction between strap and roll, ensure stable and fast cardboard feeding.
3.This machine includes electric and magnetic clutch separating brake system.
4.This machine adopts PLC auto program control, so it has high automatic extent.
5.Frequency converter drives motor to realize stable velocity change operating.
6.Light and electric signal brakes by PLC control power and magnetic clutch to keep pace with the main engine.

n Paper feeding section

1. Automation chain paper feed

2. The prop fixes position , ensures that paper feed is accurate.

3. Automatic counting.

n Printing section

1.  Planetary transmission and electrical positioning. 360-degree adjustment in both dynamic and static condition.

2. The embossing rollers get apart from printing template once machine stops.

3. The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.

4. Colors of 1 to 4 can be combined easily.

5. The pneumatic provides ink circulatory system from attracting style.

6. Top-quality paper separating and grooving blades are used.

7. Printing roller equipped with a rapid hang mould device.

8. Step pedal is used to control the side of printing plate when in mounting and dismounting.

n Slotting section

1. 360-degree electromotion adjustment of grooving position.

2. The four grooving blades linkage adjustment.

3. Top-quality steel blades are used to ensure slotting smoothness.

4. Gear wheel adopt 45 # steel forging, quenching of high frequency.

5. Non-bonds transmission gears are joined together, which ensures long-term printing precision.

6. Dip-in lubrication ensures long life usage.

7. Electromotion shifting and pneumatic locking is used on printing and grooving parts.

Electric parts adopt international and domestic famous brand to ensure the stable motion

The Buyer always asks the price from us at the beginning. There are different conditions
and stages.
Different conditions and stages, different questions and solutions.

1. If the buyer also want to make the corrugated cardboard by yourselves, please offer following
details to match the right machines for you.
1) Capacity/output-----How many pieces cardboards per day? It determs the speed and configurations of this production line.
2) How many plies of your cardboard?-----3ply, 5ply or 7ply?
3) Cardboard/Paper Roll width----Model selection. (From 1300mm to 2500mm)

2. If the buyer only needs to make the cartons as well as the new factory, please offer following
details to match the right machines.
1) Capacity?-----Speed, configuration and machine selection.
2) The maximum size of the carton you need---Model selection. (L+W)*2+50MM will be the maximum length. You can calculate it by yourselves.
3) How many color printing?-----Different printing number, different prices.
4) Do you need to make abnormal/odd shape of carton box? If yes, you need to buy the die-cutting machine. Please also offer the scope of the odd shape case, color printing or not, how many colors and other details.
5) Do you still need some supporting machines? Such as thin blade slitter and scorer, gluing machine and stapler, etc.

3. If you are the old factory and just want to change some machines, you only need to offer following details:
1) The model selection
2) The speed you want
3) If need the printing function, please let us know how many color printing you need.

4. About Warranty
ONE Year.
Within one year, any problems caused by our machine's physical issues, we will send
the spare parts to you for free. You can repair them by those spare parts.
You only need to bear the transportation cost.
Generally speaking, as long as you use them reasonably, they can work for you well at least 10 years.

5. About the after-sale Services.
1) You can send your workers or technicians to China to learn to how to operate the machines.
2) We will send our technicians to your country to provide the installation and debugging servies
for you. During that, our technicians will teach your workers how to operate them.
You need to undertake the round trip airfare, local food, accommodation, transportation and other local cost.
Meanwhile, you need to pay USD$80/day for per technician.
3) In the course of the production at your side, if you need our technicians to help you, just follow above points.

6. About more services or integrated solutions, please contact us via sales(at).
For consumables and spare parts, please contact us via sales(at).
