Home > Products > Pneumatic Cylinder > SI Series ISO6431 Standard Cylinder

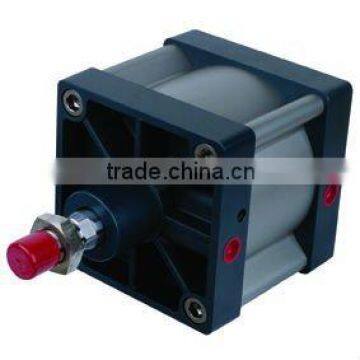

SI Series ISO6431 Standard Cylinder
- Ningbo
- T/T L/C D/P D/A
You May Like
Product Details
| Type | Valves | Place of Origin | Zhejiang, China | |
| Model Number | SI series | Brand Name | AIPHONSO or OEM |
Product Description
Specifications
SI series ISO6431 standard double action pneumatic cylinder1According to ISO6431 Standard
2. double acting pneumatic cylinder
Ordering Code
| SI | - | 50 | × | 50 | - | 25 | - | S | - | LB |
| Model | Bore | Stroke | Adjust stroke | Magnet Code | Blank:basic type | |||||
| SI:ISO6431 Standard double action | 25/50/75mm | S:With magnet | LB:front and back fixed type | |||||||
| SID:ISO6431 Standard two rod double action type | Blank:Without magnet | FA:front flange type | ||||||||
| SIJ:ISO6431 Two rod stroke adjust type | FB:rear flange type | |||||||||
| CA:single earring | ||||||||||
| CB:double earring | ||||||||||
| TC:swinging type | ||||||||||
| TC-M:swinging type attach foot seat | ||||||||||
Specification
| Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Action type | Double Action | ||||||||
| Working Medium | Air | ||||||||
| Pressure Range | 1.0~9.0Kgf/cm² | ||||||||
| Ensured Pressure Resistance | 13.5Kgf/cm² | ||||||||
| Temperature Range | -5~70℃ | ||||||||
| Speed Range | 50~800mm/s | ||||||||
| Buffer Type | Adjustable Buffer | ||||||||
| Buffer Stroke | 24 | 32 | |||||||
| Joint Pipe Bore | PT1/8" | PT1/4" | PT3/8" | PT1/2" | PT3/4" | ||||

Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.
