Home > Products > Pneumatic Solenoid Valve > PU220 Series Solenoid Valve Direct Action Solenoid Valve Fatory Direct Sales
PU220 Series Solenoid Valve Direct Action Solenoid Valve Fatory Direct Sales
- Ningbo Port/Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
12v Plastic Solenoid Valve G1/8 DC12V
-
Two Way Plastic Solenoid Valve G1/8 DC12V
-
2 Way 2 Position Zero Pressure Starting Function Normal Close Direct Drive Solenoid Water Valve Large Aperture G3/8" UW Series
-
2 Way 2 Position Zero Solenoid Shut-off Valve for Water
-
Inch Water Solenoid Valve
-
Plastic Solenoid Valve 24v dc Solenoid Valve / 2 Way/12V,24V DC or 110V,220V AC/ Water,air,gas,oil
Product Details
| Type | Valves | Place of Origin | Zhejiang, China | |
| Model Number | PU | Brand Name | Aiphonso |
Product Description
PU220 series solenoid valve, it is 2/2way,direct action type. It can be equipped with timer to control water drain timely. IP65, Insulation F class.
1)port size: 1/8" ~1"
2) Working Medium : compressed air, water, oil
3) Valve Body: Brass
4) Valve Control Style: NC (normal close)
5)Orifice Size: 1.5, 2.3, 8, 13, 20, 25mm
6) Working Pressure: 0~0.7MPa
7)Max. Test Pressure: 1.05MPa
7) Seal Material: NBR,EPDM,VITION
8)Ambient Temperature: -20~60°C
9) Working Temperature: NBR for -5~80°C, EPDM,VITON for -5~150°C
10)Voltage:DC12V, DC24V, AC24V, AC110V, AC220V ,AC380V 50/60HZ,
For more information, please contact with us.

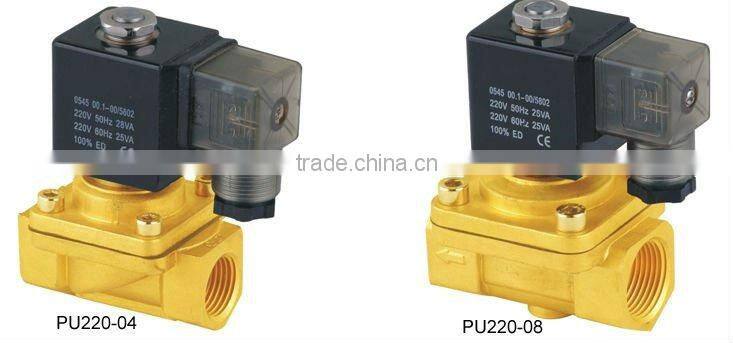

Model | PU220-02 | PU220-04 | PU220-06 | PU220-08 |
Fluid | Air, Water, Oil | |||

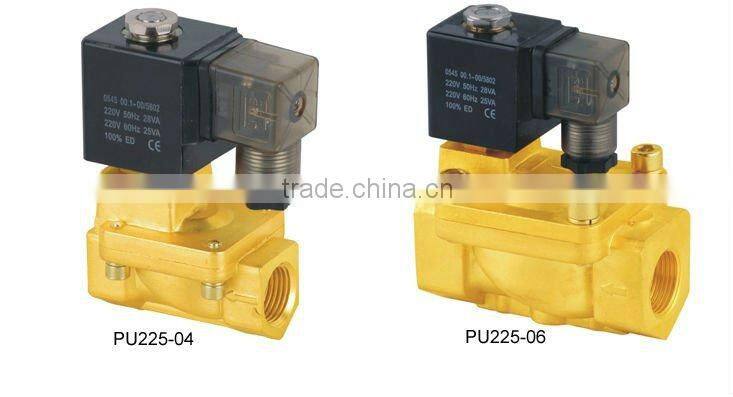

Operation | 220: Direct Drive Type 225: Guid Type | |||
Type | Normal close type | |||
Aperture of fl ow rate(mm) | 2.3 | 13 | 20 | 25 |
Cv value | 0.18 | 4.00 | 8.60 | 11.00 |
Joint pipe bore | G1/4″ | G1/2'' | G3/4'' | G1'' |
Operation fl uid viscosity | 50 CST Below | |||
Operating pressure | 0 ~ 0.7MPa | |||
Max. Proof pressure | 1.05MPa | |||
Operating temperature | -5 ~ +80°C | |||
