Home > Products > Pneumatic Solenoid Valve > 2 Way 2 Position Zero Pressure Starting Function Normal Close Direct Drive solenoid Water Valve Large Aperture G3/8" UW series

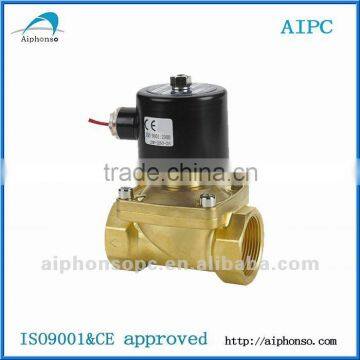

2 Way 2 Position Zero Pressure Starting Function Normal Close Direct Drive solenoid Water Valve Large Aperture G3/8" UW series

FOB Price

USD $4 - $10 / Piece

10 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port NINGBO SHANGHAI
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Valves		Place of Origin	Zhejiang, China
Model Number	2W025-08		Brand Name	AIPHONSO

Product Description

Specifications

.Solenoid valve(1/8" 1/4" 3/8" 1/2"3/4" 1" 1-1/4" 1-1/2" 2")
2.ISO9001:2000 CCC CQC CE
3.Integrity based,quaity first

1.CE,ISO9001-2008,ROHS
2.Diaphragm seal structure
3.Easy maintenance
4.Good waterproof performance
5.Normal Closed

This guiding type valve adopts the diaphragm seal structure,with zero differential pressure starting function,large flow,simple structure,easy maintenance,good waterproof performance and multiple wiring direction.

electric water valve specification

Model	2W025-06	2W025-08	2W040-10	2W160-10	2W160-15	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
Fluid	Air, Water, Oil
Action	Direct Acting, Normally Closed
Type of Actuation	2 port 2 position
Orifice Size	2.5mm		4mm	16mm		20mm	25mm	35mm	40mm	50mm
Cv	0.23		0.60	4.8		7.6	12	24	29	48
Port Size	1/8	1/4	3/8	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Viscosity Limit	Under 20CST
Operating Pressure Range	Air:0~0.7MPa, Water:0~0.5MPa, Oil: 0~0.5MPa
Proof Pressure	1.05MPa
Ambient and Fluid Temperature	-5 ~ 80 degrees centigrate
Allowable Voltage Range	±10% of rated voltage
Material of Body	Brass
Seal Material	XNBR

Media	Water
Applicable pressure range	0.15~0.85Mpa
Proof pressure	1.2Mpa
Ambient and fluid temperature	-5~60°C
Material of body	Aluminum alloy
Standard voltage	DC12V,DC24V,AC24V,AC110V,AC220V,AC380V
Power consumption	AC220V	2.0W
	DC12V,AC110V,AC380V	2.5W
	DC24V	3.0W
	AC24V	3.5W
Allowable voltage range	-15%~10%
IP rate	IP65
Insulation rate	Class F
Action	Internally piloted
Min. activate time	0.05 s
Lubrication	Needless
