Home > Products > One Touch Fittings > 2L(US) Series steam underwater solenoid valve two way solenoid valve cheap price

2L(US) Series steam underwater solenoid valve two way solenoid valve cheap price

FOB Price

USD $10 - $50 / Piece

10 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port ningbo
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Valves		Place of Origin	Zhejiang, China
Model Number	2L / US -15		Brand Name	AIPHONSO

Product Description

Specifications

2/2way, pilot operated steam valve
High temperature:-5~185C
1/2" ~ 2"
Brass or SS
Threaded or

Detailed Product Description

1)2/2way, pilot operated steam valve
2)High temperature:-5~185C
3)1/2" ~ 2"
4)Brass or SS
5)Threaded or flange mounting

2L series pilot-operated steam solenoid valve, it is 2/2way. It is high temperature can up to -5~185°C, so mostly for steam medium, we also call it steam valve. It is designed correspondingly to support higher pressure of 1.5MPa, the orifice also will be bigger than normal valve for same thread size to make larger flow rate. It can change the coils to be as explosion-proof solenoid valve

1)port size: 1/2" ~ 2"

2) Working Medium: steam, air, water

3) Action Type: pilot operated

4) Valve Body: Brass or Stainless Steel

5) Valve Control Style: NC (normal close)

6)Orifice Size: 17,22,30,50

7) Working Pressure: 0~1.5MPa

8) Max. Proof Pressure: 1.5MP

9) Seal Material: PTFE

10) Working Temperature: -5~185°C

11) Wiring Form: lead wire type, DIN connector, explosion-proof coil

12) Voltage: DC12V, DC24V, AC24V, AC110V, AC220V ,AC380V 50/60HZ,

For more information, please contact with us.

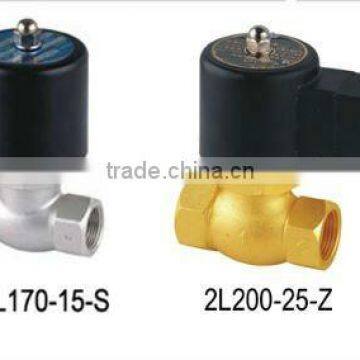

Model	2L170-15	2L170-20	2L200-25	2L300-35	2L300-40	2L500-50
Aperture of Flow Rate	17		20	30		50
CV Value	4.8		12	20		48
Joint Pipe Bore	G1/2	G3/4	G1	G1 1/4	G1 1/2	G2
Motion Pattern	Guide Type
Working Medium	Air,Water, Steam
Type	Normal Close Type
Operation Fluid Viscosity	20CST Below
Working Pressure	0.1~1.5
Max. Pressure Resistance	1.5
Operating Temperature Range	-5~180°C
Voltage Range	±10%
Material of Body	Brass
Material of Oil Seal	PTFE
