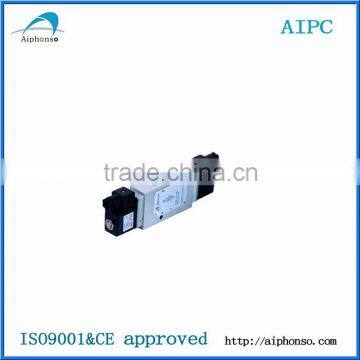

4v Series 24 volt solenoid valve low price solenoid valve
- 100000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T
You May Like
Product Details
| Type | Valves | Place of Origin | Zhejiang, China | |
| Model Number | 4V100/200/300 | Brand Name | AIPHONSO |
Product Description
Specifications
1.Material: Aluminum2.Working Pressure: 0.2~0.8Mpa
3.Valve type: single/double
4.Ambient Temperature: -5~50
4V100 series solenoid valve/Control Valve (4V,4A,33,4V)
4V1,4A1,3V1,3A1
Characteristic:
1. Service life: 10 million cycle times.
2. The bodies are mirror finished and hardending treated.
3. Equipped with imported oil seals with smaller fricion and longer service life.
4. With imported coils, low power consumption, speedy response.
5.Capable of long service time without being damaged.
Model | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 | |||
Working Medium | 40 Micron Filtered Air | ||||||||||||
Motion Pattern | Direct Drive Type | ||||||||||||
Position and Way NO. | Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | |||||||||
Port size | Air inlet=Air outlet=Air exhaust= PT1/8 | Air inlet=Air outlet= PT1/4 Air exhaust= PT1/8 | |||||||||||
Gas Temperature | -5~60°C (23~140°F) | ||||||||||||
Effective area | 14mm2 (CV=0.78) | 12mm2 (CV=0.67) | 16mm2 (CV=0.89) | 12mm2 (CV=0.67) | |||||||||
Lubrication | Not Required | ||||||||||||
Working-pressure | 0.15~0.8Mpa(21~114Psi) | ||||||||||||
Max. proof pressure | 1.2Mpa (170Psi) | ||||||||||||
Power Consumption | AC:6VA DC: 3W | ||||||||||||
Protect class | IP65 (DIN40050) | ||||||||||||
Wiring Form | Direct lead wire or connector | ||||||||||||
Max. action frequency* | 5 cycles/second | 3 cycles/second | 5 cycles/second | 3 cycles/second | |||||||||
Coil insulation | Class B | ||||||||||||
Voltage Range | -15%~+10% | ||||||||||||
Shortest Excitation Time | Below 0.05second | ||||||||||||
* Max. action frequency is unloaded condition.
