Home > Products > One Touch Fittings > 2 Way MCF Series Electromagnetic Solenoid Pulse Valve

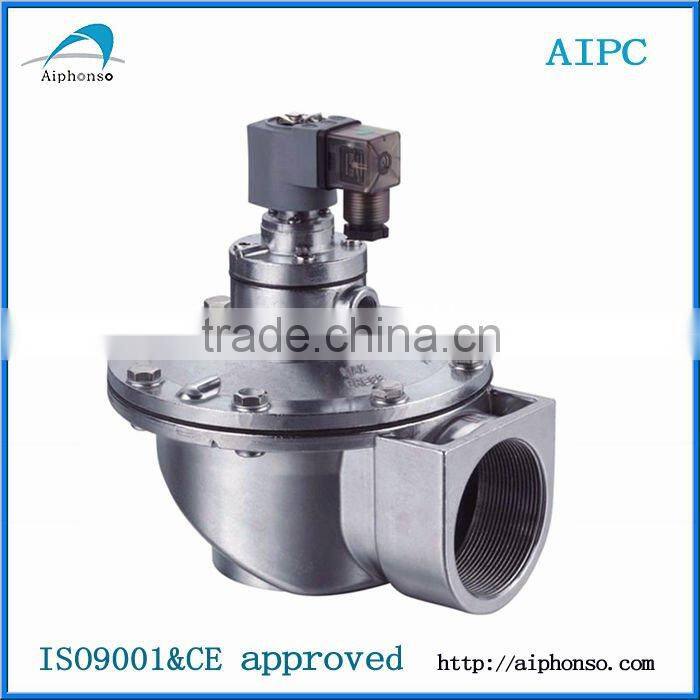

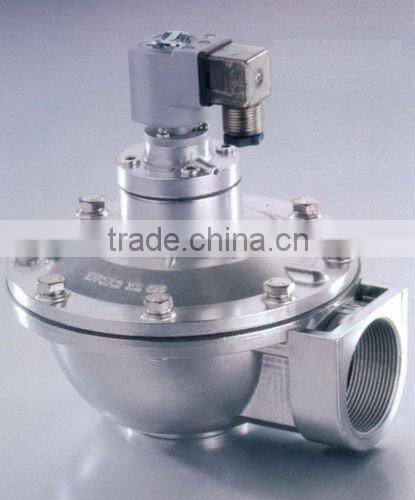

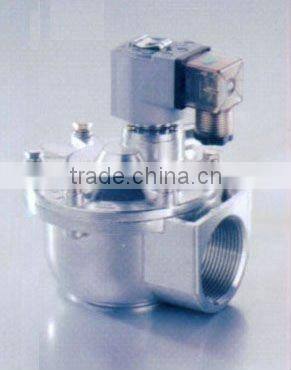

2 Way MCF Series Electromagnetic Solenoid Pulse Valve
- Ningbo or Shanghai
- T/T
You May Like
-
Stainless Steel Parker Tube Fittings
-
Pneumatic Components /one Touch Tube Fitting- IHN(Metal Couplers)
-
Pneumatic Components - IBA(Brass Fittings) With High Quality,long Lifespan
-
Pneumatic Components/one Touch Tube Fitting - IBD(Push-in Fittings)
-
Quick Coupler /one Touch Tube Fitting - IHF(Metal Couplers)
-
IHM Pneumatic Connect Fitting/one Touch Tube Fitting
Product Details
| Type | Valves | Place of Origin | Zhejiang, China | |
| Model Number | MCF | Brand Name | Aiphonso |
Product Description
Specifications

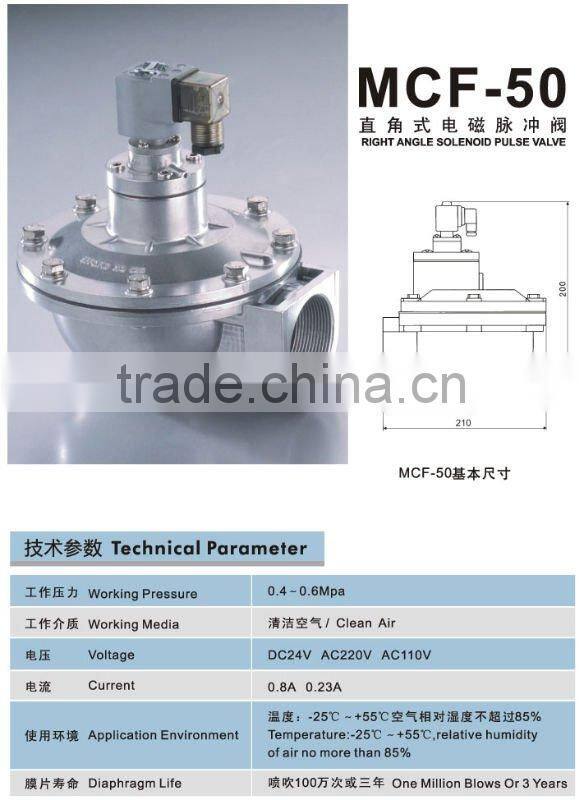

MCF-50 Electromagnetic Pulse Valve1.Available from 1" to 3"
2.High Flow,electromagnetic power
3.CE certificate,good price
MCF Series Electromagnetic Pulse Valve
DMF-ZM-25
1.Electromagnetic pulse valve is controlled through electric signal control valve body.
2.DMF Series Embedded Electro-magnetic Pulse Valve
3.DMF Series Right-angle Electro-magnetic Pulse Valve Thread type
4.DMF series Explosion-proof Electro-magnetic Pulse Valve
5.QMF Series Gas Control Electro-magnetic Pulse Valve
6.MCF Series Electro-magnetic Pulse Valve
7.AMF Series Electro-magnetic Pulse Valve
8.YMF Series Embedded Electro-magnetic Pulse Valve
Pulse / Flooding solenoid valve
* MCF series electro-magnetic pulse solenoid valve
* YMF series flooding solenoid valve
* this valve is a kind of compression air switch for blast cleaning system of pulse pocket type dust catcher and is controlled by the output signal from pulse blast controller. The blast cleans the filter bag line by line and ensures the cleaning capacity and dust absorption efficiency of duct catcher
| Model | MCF-20 | MCF-25 | MCF-40 | MCF-50 | MCF-65 | MCF-76 |
| Fluid | Air | |||||
| Port size | PT3/4 | PT1/2 | PT1-1/2 | PT2 | PT2-1/2 | PT3 |
| Cv Value | 11.2 | 18.5 | 43 | 60 | 120 | 130 |
| Operating pressure range | 0.4~0.6Mpa | |||||
| Proof pressure | 0.8Mpa | |||||
| Amblent and fluid tempreture | "-5~60 C(no freezing) | |||||
Contact Us
- Fenghua Aiphonso Industrial Automation Co., Ltd.
- Contact nameRachel Mao Chat Now
- Phone86-574-88957238
- AddressNO.65,B.Yuanfeng Road,Dongjiao Industrial Zone,Fenghua,Ningbo,China, Ningbo, Zhejiang
