High Quality Hand rubber lined diaphragm valve price
USD $10 - $200
/ Piece
1 Piece(Min.Order)
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Chinese Yk43X/F/Y high pressure Casting natural gas pressure reducing valve
-
Chinese high pressure flange check valve 6 inch
-
Chinese high pressure flange 1 2 inch check valve price
-
Chinese Stainless steel sewage check valve
-
Chinese high pressure Stainless steel flange water check valve diesel
-
Stainless Steel Screw Self priming Pump Antifreeze High-lift Booster Pumps
Product Details
| Standard or Nonstandard | Standard | Structure | Diaphragm | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | DN50-DN300 | |
| Place of Origin | Zhejiang, China | Model Number | EG41J-10 | |
| Brand Name | joto |
Product Description

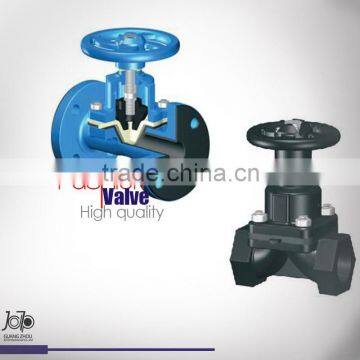

High Quality Hand rubber lined Diaphragm Valve price
1,performance standard
type | Nominal pressurePN(MPa) | test pressure Ps(MPa) | Suitable medium | Working temperature(℃) | |
Shell test | Seal test | ||||
EG41J-6 | 0.6 | 0.9 | 0.66 | W.Corrosion Resistance Fluid | ≤100 |
EG41J-10 | 1.0 | 1.5 | 1.1 | ||
EG41J-16 | 1.6 | 2.4 | 1.76 | ||
G41J-6 | 0.6 | 0.9 | 0.66 | ||
G41J-10 | 1.0 | 1.5 | 1.1 | ||
2,Main Parts material
parts name | Body | Disc ,Bonnet | Stem | diaphragm | hand wheel |
material | HT200 lining rubber | HT200 | 35 | Each kind of base rubber | HT200 |
material | HT200 Lining fluorine revertex | HT200 | 35 | Fluorine revertex | HT200 |
material | HT200 | HT200 | 35 | chloronorgutta | HT200 |
Note: Is suitable in a medium fence “W” refers to the valve chest not lining any material; “J” refers to the valve chest lining hard rubber
3,products standard
type | Nominal diameter DN(mm) | |||||||||||||||
15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | |
EG41wJ-6 | . | |||||||||||||||
EG41wJ-10 | . | . | . | . | . | | | |||||||||
EG41wJ-16 | . | . | . | . | . | |||||||||||
G41wJ-4 | | | . | . | . | . | ||||||||||
G41wJ-6 | . | . | . | . | . | . | . | . | . | . | . | . | . | . | . | . |
G41wJ-10 | . | . | . | . | . | . | . | . | . | . | . | . | . | . | . | |
