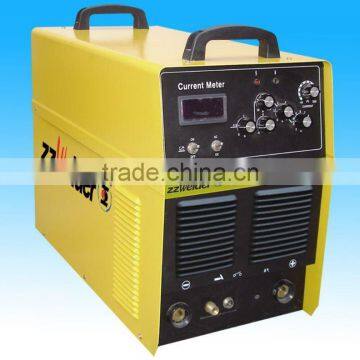

WSE-200 tig welding machine ac dc
- Xiamen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | ZZwelder | |
| Model Number | WSE-200 |
Product Description
Specifications
1. can aluminium,stainless steel, soft steel, carbon steel, cooper, alnico;2.tig welding machine ac dc
WSE Series aluminium welding machine( tig welding machine ac dc ).
1.Combining AC and DC in one welder, noise-free.
2.Stable current, easy wire feeding, beautiful welding shape.
3.Protective circuit inside, safe and reliable.
4.Can weld many sort of metal. Such as stainless steel, soft steel, carbon steel,
cooper, alnico and aluminium etc.
WSE-200 Technical Data
Input power voltage(frequency) single phase 220∨ ±15% 50/60HZ
Rate input power capacity(K ∨ A) 4.5
No-load voltage(∨) 56
Output current adjustment range(A) 10-200
Rated output voltage(∨) 18
Rated duty cycle(%)60
Arc-start mode HF
Pre-welding gas blow time(s) 0-2
Efficiency(%) 85
Power factor(COS φ) 0.93
Post-welding gas blow time(s) 2-10
Weight(KG) 32
Measurement(mm) 580x334x480
Insulation class F
Protection class IP23
Decline time 0-5
Suitable welding thickness(mm) 0.3-5
Packing: Standard carton
