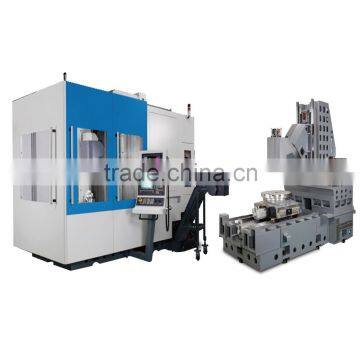

Lie conversion five-axis linkage machining center

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New		CNC or Not	CNC
Automatic Grade	Automatic		Place of Origin	Fujian, China

Item		Unit
Route	X-axle	mm	600
	Y-axle	mm	700
	Z-axle	mm	600
Rapid Speed	X/Y/Z-axles	m/min	45
Principal Axis	Type		SK-40
	Max. Speed	RPM	24000
	Power	KW	21
	Torsion	Nm	115
Working Table	Diameter	mm	600
	Loading Capacity	kg	700
	C-axle	degree	360
	C-axle Speed	RPM	15
	C-axle Min.Rapid Speed	RPM	0.001
Rotation Axles	B-axle	degree	0-180
	Y-axle Speed	RPM	15
Linear Axis Positioning Accuracy	X-axle	mm	0.01
	Y-axle	mm	0.01
	Z-axle	mm	0.01
Linear Axis Repeat Accuracy	X-axle	mm	0.008
	Y-axle	mm	0.008
	Z-axle	mm	0.008
Rotaion Axles Positioning Accuracy	B-axle	Second	15s
	C-axle	Second	15s
Rotaion Axles Repeat Accuracy	B-axle	Second	±5
	C-axle	Second	±5
Tool Changer	Capacity	Piece	30
	Machine Weight	kg	12000
