Solar pv Connector Ip67 PV Solar Junction Box for BI of Crystalline Silicon PV Modules
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
PV Solar Junction Box for 280W to 300W Crystalline Silicon PV Modules Multi Contact Solar
-
PV Solar Junction Box for 180W Crystalline Silicon PV Modules Cable Connectors
-
PV Solar Junction Box for 180W Crystalline Silicon PV Modules Solar Charger
-
PV Solar Junction Box for 180W Crystalline Silicon PV Modules Mc4 Solar Connectors
-
PV Solar Junction Box for 280W to 300W Crystalline Silicon PV Modules Amp Connector
-
PV Solar Junction Box for 280W to 300W Crystalline Silicon PV Modules Solar Energy
Product Details
| Place of Origin | Guangdong, China | Brand Name | Superbat | |
| Model Number | PV-2115-JB009 | Type | Other, PV Junction Box |
Product Description
Specifications
lar pv connector ip672.Power Capacity:100W
3.Overall dimensions:90*9*9mm
4.Wire Size:4mm2
5.Rated Current:8A

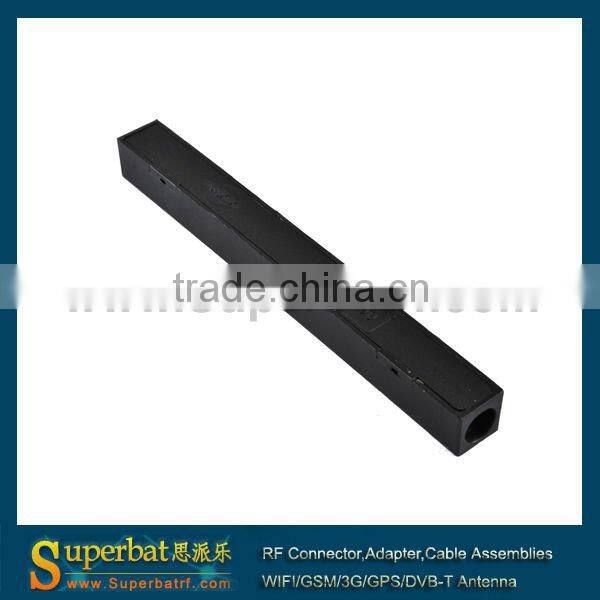

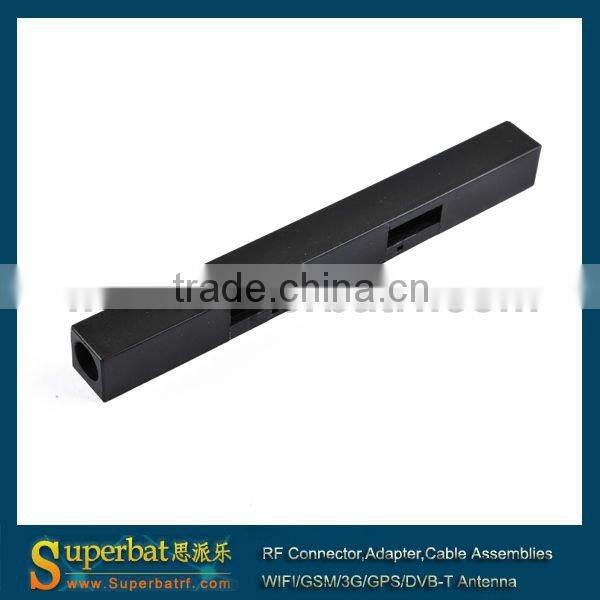

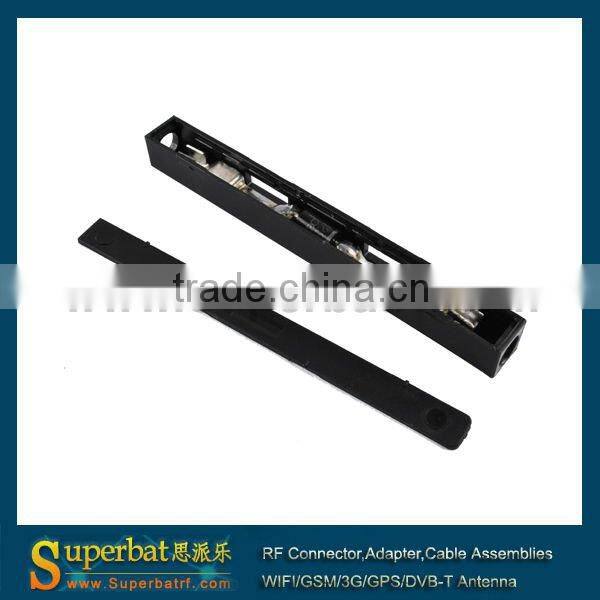

PV Solar Junction Box for BI of Crystalline Silicon PV Modules # C01
Model: PV-2115-JB009
The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.
Main technical parameters
| Current for PV Module | 8A |
| Rated Voltage | DC 1000V |
| Protection Degree | IP65 |
| Power Capacity | 100W |
| Touch Protection Class | Ⅱ |
| Temperature Range | -40°C ~ 85°C |
| Diodes Details | 1 PCS |
| Number of terminals | 2 rails |
| Wire Size | 4mm2 (~10 gauge AWG) |
| Contact Resistance | <5 Ohm |
| Flame Class | UL94-V0 |
| Contact Material | Copper |
| Insulation Material | PPO |
| Overall dimensions | 90*9*9mm |
| N.W(KG) | 0.010KG |
Product Features:
1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3.Excellent waterproof and dust effects, sealed using irrigation methods glue.
4.Mini ultra small form-factor, simple structure,and practical,suitable for thin film PV modules,widely used In the field of building Integrated solar PV.
5.BUS,as well as the connection cables are connected using Welding,electrical performance ,then safety and reliability.
Easy-Using & Cheap! Don't Hesitate~! Just take it~!
